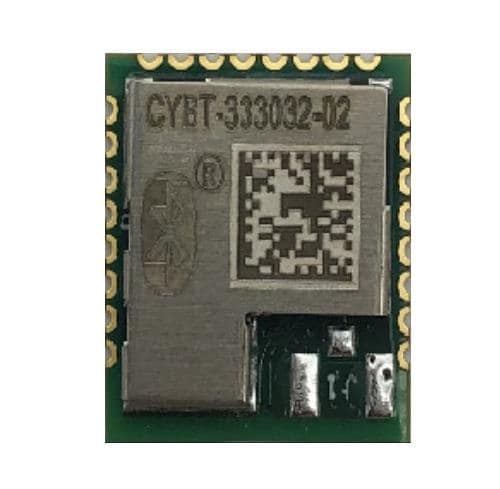

Infineon CYBT-333032-02 ມູດູນ Bluetooth BT DM ອຸດສາຫະກຳ ແລະ IOT

Core: ARM Cortex M3

Width: 12 mm

Height: 1.95 mm

Length: 13.5 mm

Antenna: External

Protocol: BLE, Bluetooth 5.0

Data Rate: 4 Mb/s

Frequency: 2.44 GHz

Dimensions: 12 mm x 13.5 mm x 1.95 mm

Memory Size: 512 kB, 352 kB

Sensitivity: - 96.5 dBm

Output Power: 9 dBm

Interface Type: I2C, I2S, PCM, SPI, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 96.5 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.3 V

Antenna Connector Type: RF Solder Pad

Operating Supply Voltage: 2.3 V to 3.6 V

Supply Current Receiving: 26.4 mA

Supply Current Transmitting: 52.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
