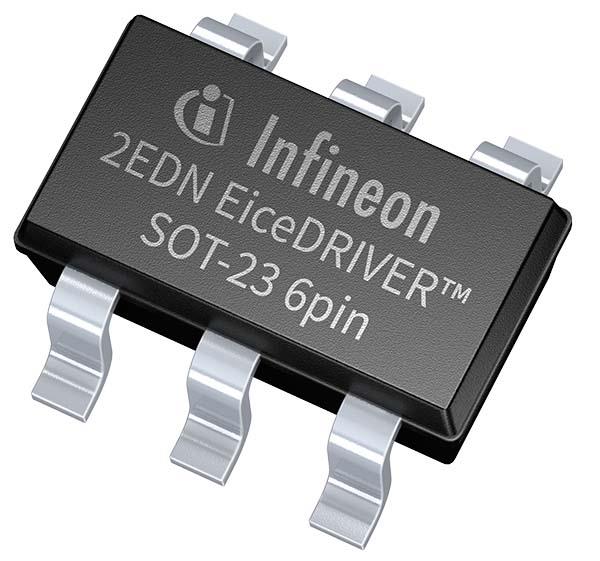

Infineon 2EDN7533BXTSA1 Low-Side DRIVER IC

Fall Time: 6 ns

Rise Time: 8.6 ns

Configuration: Inverting

Mounting Style: SMD/SMT

Output Current: 5 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 20 V

Input Voltage - Min: - 10 V

Supply Voltage - Max: 20 V

Supply Voltage - Min: 4.5 V

Propagation Delay - Max: 25 ns

Operating Supply Current: 900 uA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 1.4 Ohms
