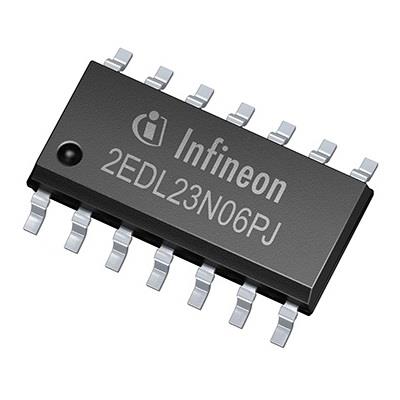

Infineon 2EDL23N06PJXUMA1 ຮາບ-ບຣິດຈ 600V half-brdg,2.8A BSD, OCP, EN & FAULT

Shutdown: Shutdown

Fall Time: 37 ns

Rise Time: 48 ns

Logic Type: CMOS

Technology: Si

Unit Weight: 138.490 mg

Mounting Style: SMD/SMT

Output Current: 2.3 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 17.5 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 900 mW

Propagation Delay - Max: 610 ns

Operating Supply Current: 340 uA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
