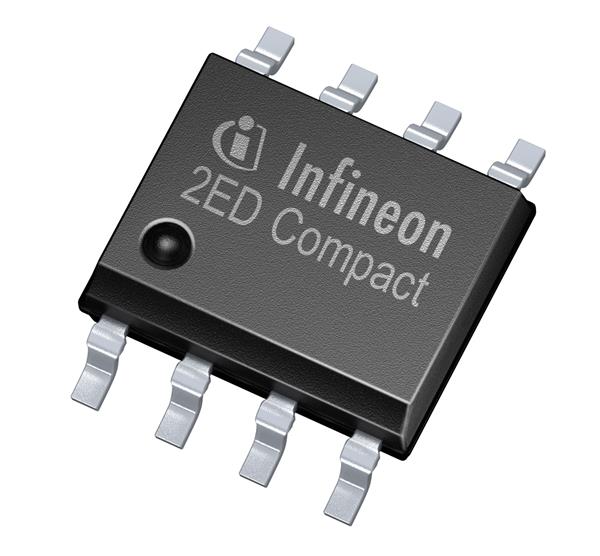

Infineon 2ED2109S06FXUMA1 ຮາບ-ບຣິດ LEVEL SHIFT SOI

Shutdown: Shutdown

Fall Time: 35 ns

Rise Time: 100 ns

Logic Type: CMOS, LSTTL

Technology: Si

Mounting Style: SMD/SMT

Output Current: 290 mA

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 625 mW

Propagation Delay - Max: 1.03 us

Operating Supply Current: 450 uA

Maximum Turn-On Delay Time: 1030 ns

Maximum Turn-Off Delay Time: 300 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
