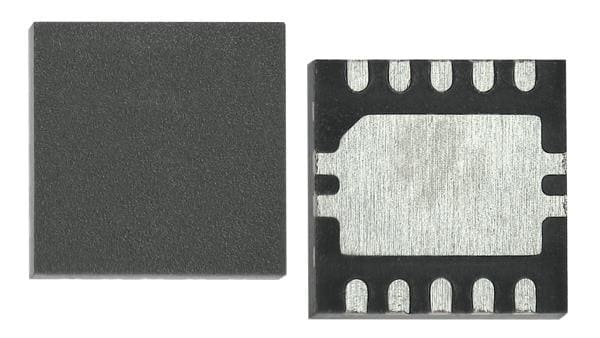

Infineon 1EDN7136GXTMA1 High-Side DRIVER IC

Fall Time: 5.5 ns

Rise Time: 5.5 ns

Logic Type: CMOS

Technology: GaN

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 11 V

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Supply Voltage - Max: 11 V

Supply Voltage - Min: 4.2 V

Operating Supply Current: 20.5 mA

Maximum Turn-On Delay Time: 109 ns

Maximum Turn-Off Delay Time: 109 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
