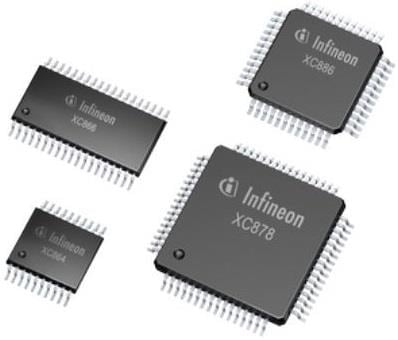

Infineon SAK-XC822MT-1FRA AA MCUs 8-Bit Single Chip Microcontroller

Core: XC800

I/O Voltage: 2.5 V to 5.5 V

Unit Weight: 61.540 mg

Data RAM Size: 500 B

Data RAM Type: SRAM

Qualification: AEC-Q100

ADC Resolution: 10 bit

Data Bus Width: 8 bit

Interface Type: IIC, I2C, SSC, UART

Mounting Style: SMD/SMT

Number of I/Os: 21 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 4 kB

Program Memory Type: Flash

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3.3 V

Analog Supply Voltage: 3.3 V to 5 V

Number of ADC Channels: 4 Channel

Maximum Clock Frequency: 24 MHz

Number of Timers/Counters: 3 Timer

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
