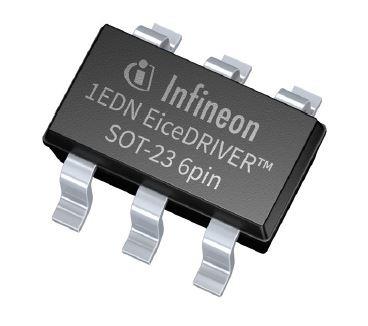

Infineon 1EDN7511BXUSA1 Low-Side DRIVER IC

Shutdown: No Shutdown

Fall Time: 4.5 ns

Rise Time: 6.5 ns

Logic Type: CMOS, TTL

Technology: Si

Unit Weight: 18.600 mg

Configuration: Inverting, Non-Inverting

Mounting Style: SMD/SMT

Output Current: 8 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 4.5 V

Propagation Delay - Max: 25 ns

Operating Supply Current: 400 uA

Maximum Turn-On Delay Time: 25 ns

Maximum Turn-Off Delay Time: 25 ns

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
