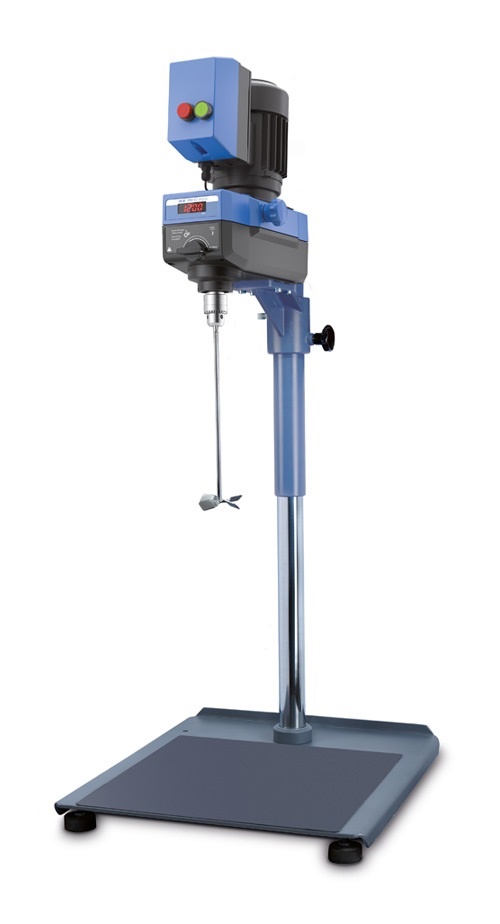

IKA RW 47 digital Package (0009023300) overhead stirrer
Stirring quantity max. per stirring position (H2O): 200 l
Motor rating input: 513 W
Motor rating output: 370 W
Motor principlethree-phase current
Speed display: LED
Speed range: 57 - 1300 rpm
Viscosity max.: 100000 mPas
Output max. at stirring shaft: 300 W
Permissible ON time: 100 %
Torque max. at stirring shaft: 3000 Ncm
Torque max. at stirring shaft at 60 1/min (overload): 4642 Ncm
Torque max. at stirring shaft at 100 1/min: 3000 Ncm
Torque max. at stirring shaft at 1.000 1/min: 285 Ncm
torque I max.: 3000 Ncm
torque II max.: 620 Ncm
Speed range I (50 Hz): 57 - 275 rpm
Speed range II (50 Hz): 275 - 1300 rpm
Speed control: stepless
Setting accuracy speed: 1 ±rpm
Deviation of speed measurement: 10 ±rpm
Stirring element fastening: chuck
Chuck range diameter: 3 - 16 mm
Hollow shaft, inner diameter: 13 mm
Fastening on stand: flange
Speed control: mechanical
Nominal torque: 30 Nm
housing material: alu-cast coating / thermoplastic polymer
Dimensions (W x H x D): 145 x 465 x 358 mm
Weight: 16 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 54
Voltage: 3 x 400 / 3 x 230 V
Frequency: 50 Hz
Power input: 513 W
