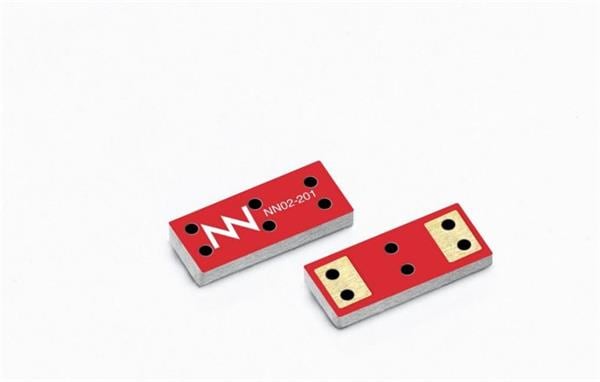

Ignion NN02-201 ເຄື່ອງຮັບສະຫນອງປະສົບ 800-10600MHz

Gain: 4.1 dBi, 1.3 dBi, 1.7 dBi, 1.9 dBi, 2 dBi, 3.2 dBi, 3.3 dBi, 5 dBi

VSWR: 3:1

Style: Rectangular

Width: 3 mm

Height: 1 mm

Length: 7 mm

Impedance: 50 Ohms

Unit Weight: 20 mg

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 8 Band

Center Frequency: 887 MHz, 892 MHz, 1940 MHz, 1940 MHz, 2450 MHz, 4150 MHz, 5502.5 MHz, 6525 MHz

Mechanical Style: Chip

Maximum Frequency: 10.6 GHz

Minimum Frequency: 800 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: WiFi 6E

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE)
