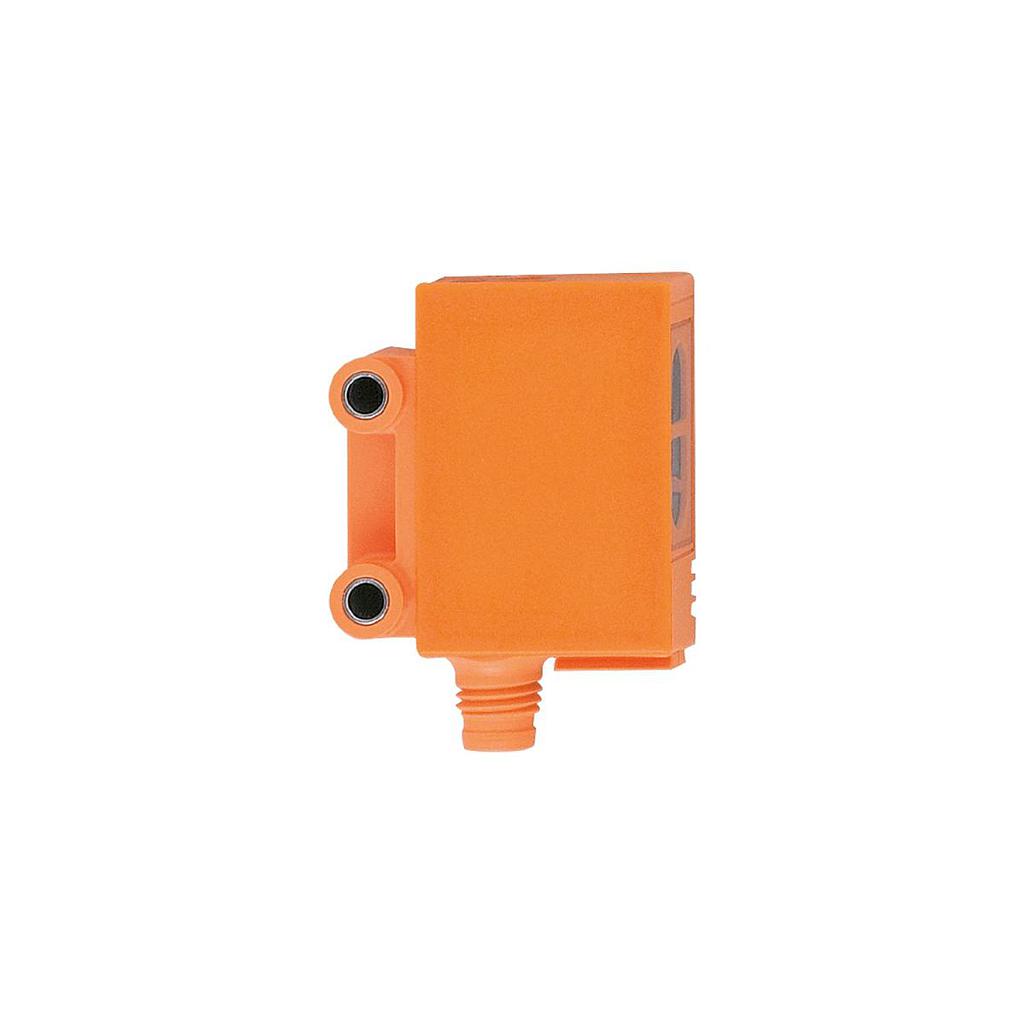

IFM Electronic OJ5148 ອຸປະກອນສັບສົມການສະຫຼຸບພື້ນຫຼັງດ້ວຍການສະຫຼຸບພື້ນຫຼັງ (15...400mm; 660nm)

Light type: Red light

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 25

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 660

Electrical design: PNP

Output function: Light/Dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Permanent current rating of switching output DC [mA]: 200

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Overload protection: Yes

Sensing range [mm]: 15...400; (white paper 200 x 200 mm 90% remission)

Range adjustment: Yes

Maximum light spot diameter [mm]: 18

Reference light spot size: Range

Background suppression available: Yes

Ambient temperature [°C]: -25...60

Degree of protection: IP67

Weight [g]: 34.9

Dimensions [mm]: 35 x 11 x 24

Material: Housing: ABS; LED window: SEPS; Pushbutton: SEPS

Lens material: PMMA

Lens alignment: Lateral lens

Display: Switching status 1 x LED, yellow | Operation 1 x LED, green

Electronic lock: Yes

Connection: Connector: 1 x M12; Coding: A
