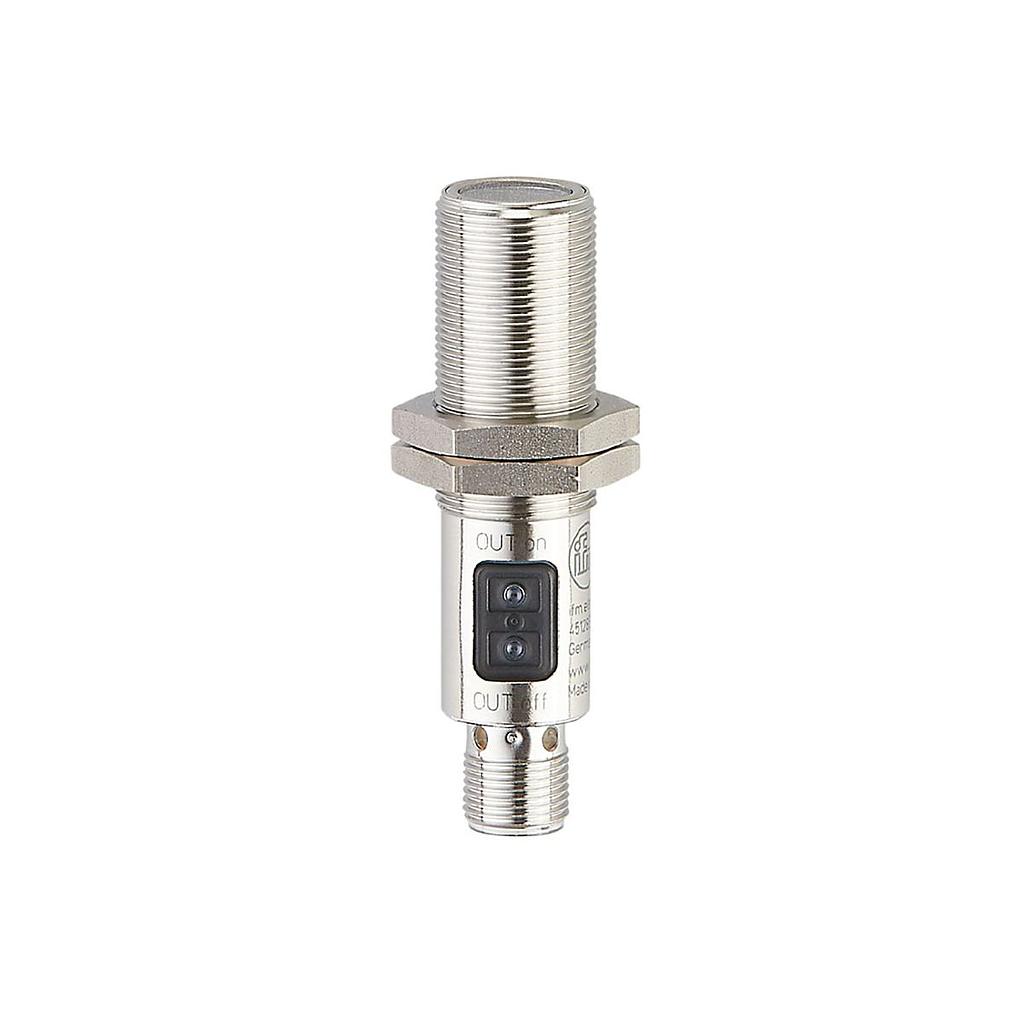

IFM Electronic OGT500 ອຸປະກອນສັບສົມການສະຫຼຸບພື້ນຫຼັງດ້ວຍການສະຫຼຸບພື້ນຫຼັງ (2...800mm; 624nm)
Light type: Red light
Operating voltage [V]: 10...36 DC ("Class 2 supply" for cULus)
Current consumption [mA]: 25
Protection class: II
Reverse polarity protection: Yes
Wave length [nm]: 624
Electrical design: PNP
Output function: Light/Dark mode; (programmable)
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))
Switching frequency DC [Hz]: 2000
Default setting: Light-on mode
Short-circuit protection: Yes
Short-circuit protection type: Pulsed
Overload protection: Yes
Sensing range [mm]: 2...800; (white paper 200 x 200 mm 90% remission)
Range adjustment: Yes
Maximum light spot diameter [mm]: 66
Reference light spot size: At maximum range
End value of monitoring range [mm]: 150...800
Ambient temperature [°C]: -25...80
Degree of protection: IP67
Weight [g]: 58.4
Dimensions [mm]: M18 x 1 / L = 72
Display: Switching status 1 x LED, yellow
Item supplied: Lock nut: 2 x
Connection: Connector: 1 x M12; Coding: A
