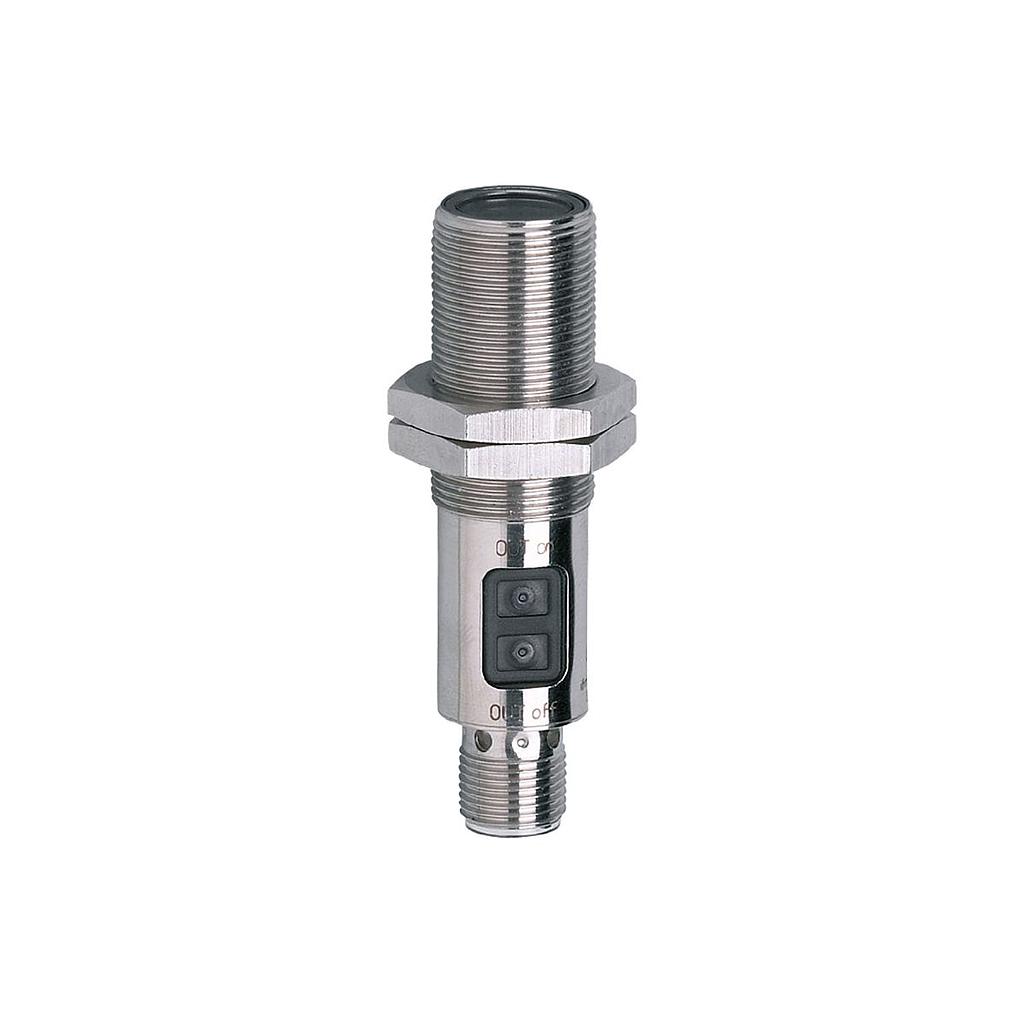

IFM Electronic OGT200 ອຸປະກອນສະແດງສະຫຼຸບແບບກະຈາຍ
Type of light: red light
Housing: threaded type
Function principle: Diffuse reflection sensor
Operating voltage[V]: 10...36 DC; ("supply class 2" to cULus)
Current consumption[mA]: 20
Protection class: II
Reverse polarity protection: yes
Type of light: red light
Wave length[nm]: 624
Outputs
Electrical design: PNP
Output function: light-on mode
Max. voltage drop switching output DC[V]: 2.5
Permanent current rating of switching output DC[mA]: 200
Switching frequency DC[Hz]: 800
Short-circuit protection: yes
Type of short-circuit protection: pulsed
Overload protection: yes
Detection zone
Range[mm]: 2...600; (white paper 200 x 200 mm 90% remission)
Setting range[mm]: 150...600
Range adjustable: yes
Max. light spot diameter[mm]: 50
Light spot dimensions refer to: at maximum range
Operating conditions
Ambient temperature[°C]: -25...60
Protection: IP 65
Mechanical data
Weight[g]: 53.6
Housing: threaded type
Dimensions[mm]: M18 x 1 / L = 72
Thread designation: M18 x 1
Materials housing: stainless steel (316L/1.4404); operator interface: TPE
Lens material: PMMA
Displays / operating elements
Display: switching status: 1 x LED, yellow
Operating elements: potentiometer
Connection: Connector: 1 x M12; coding: A
Item supplied: lock nuts: 2
