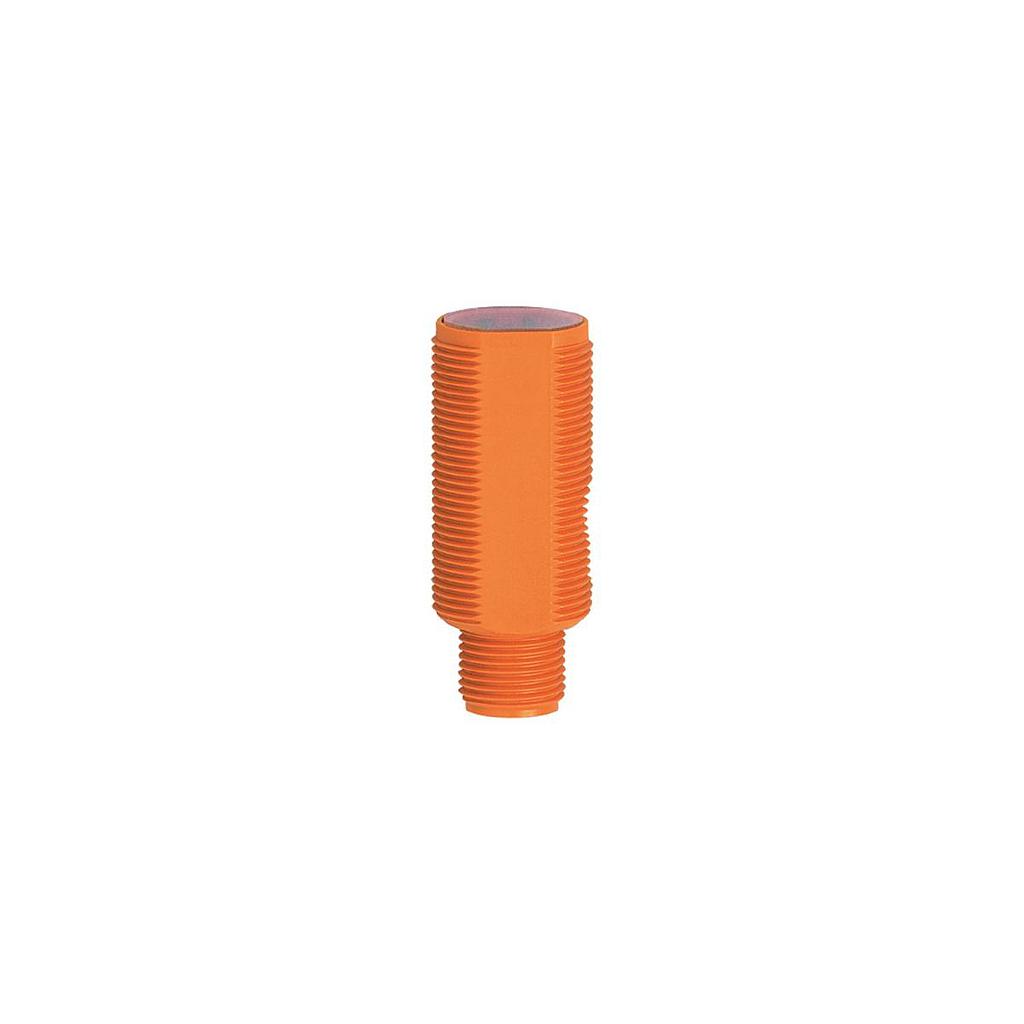

IFM Electronic OGT100 ອຸປະກອນສະແດງສະຫຼຸບແບບກະຈາຍ (10~400mm; 645nm)

Type of light: Red light

Shape: Threaded type

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 20

Protection class: III

Reverse polarity protection: Yes

Wavelength [nm]: 645

Electrical design: PNP

Output function: Light-on mode

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency [Hz]: 1000

Short-circuit protection: Yes

Overload protection: Yes

Detection range [mm]: 10...400; (white paper 200 x 200 mm, reflectance 90%)

Adjustable range: Yes

Max. light spot diameter [mm]: 25

Light spot size reference: at maximum range

End value of monitoring range [mm]: 70...400

Ambient temperature [°C]: -25...60

Degree of protection: IP65; (in combination with a corresponding connector)

Weight [g]: 14.8

Dimensions [mm]: M18 x 1 / L = 44

Thread design: M18 x 1

Material: Housing: ABS plastic

Lens material: PMMA

Switching status display: 1 x LED, yellow

Operating element: Potentiometer

Accessories included: 2 x locking nuts, screwdriver

Connection: Connector: 1 x M12; Coding: A
