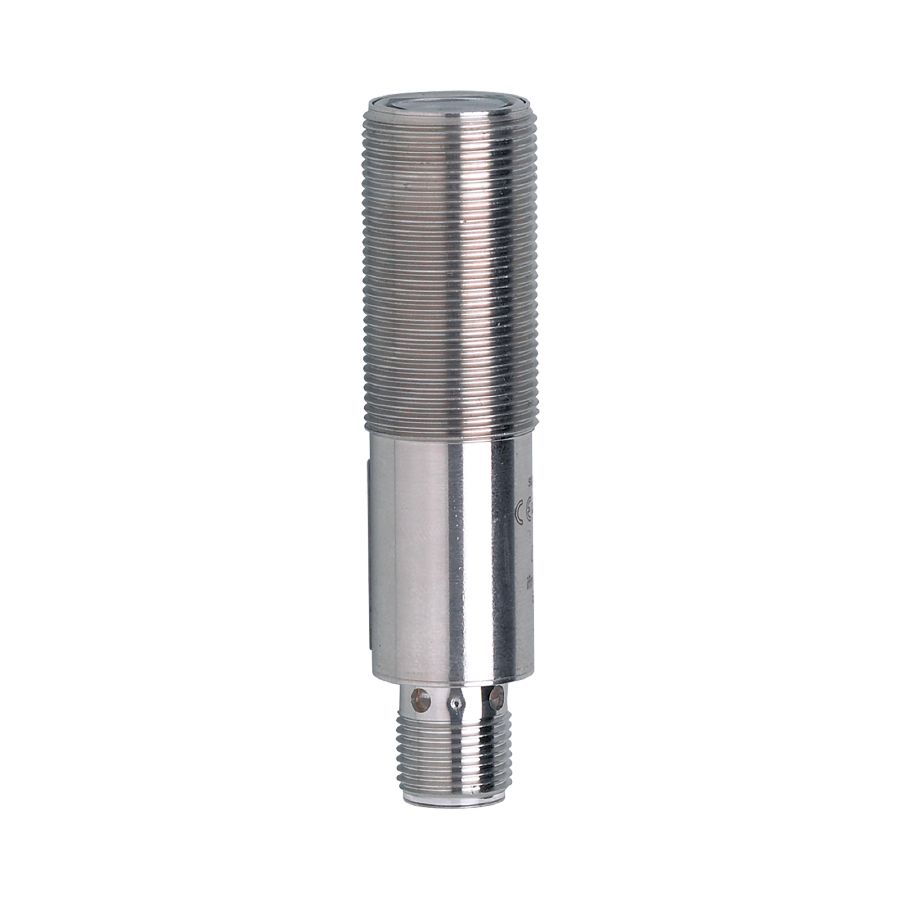

IFM Electronic OGS700 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (60m; 655nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 13

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 655

Typ. lifetime [h]: 50000

Transmitter / receiver: transmitter

Range [m]: < 60

Range adjustable: no

Diameter of the smallest detectable object [mm]: 3; (60 m)

Max. light spot diameter [mm]: 312

Ambient temperature [°C]: -10...60

Protection: IP 65; IP 67

Weight [g]: 64.3

Dimensions [mm]: M18 x 1 / L = 72

Materials: stainless steel (1.4404 / 316L); PA; EPDM

Lens material: PMMA

Display: operation 1 x LED, green

Items supplied: lock nuts: 2 x

Connection: Connector: 1 x M12; coding: A
