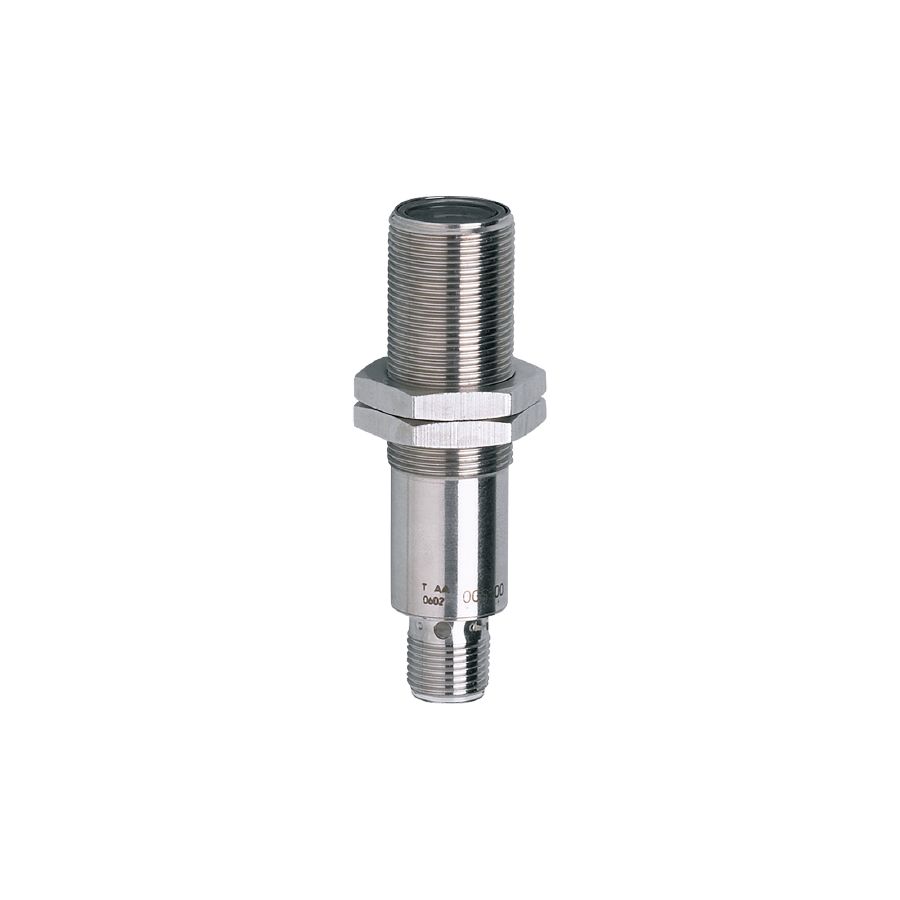

IFM Electronic OGS500 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (25m; 624nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 20

Protection class: III

Reverse polarity protection: yes

Wave length [nm]: 624

Transmitter / receiver: transmitter

Range [m]: < 25

Max. light spot diameter [mm]: 1000

Light spot dimensions refer to: at maximum range

Ambient temperature [°C]: -25...80

Protection: IP 67

Weight [g]: 62.3

Dimensions [mm]: M18 x 1 / L = 72

Materials: stainless steel (1.4404 / 316L); PA; EPDM

Lens material: PMMA

Display: operation 1 x LED, green
