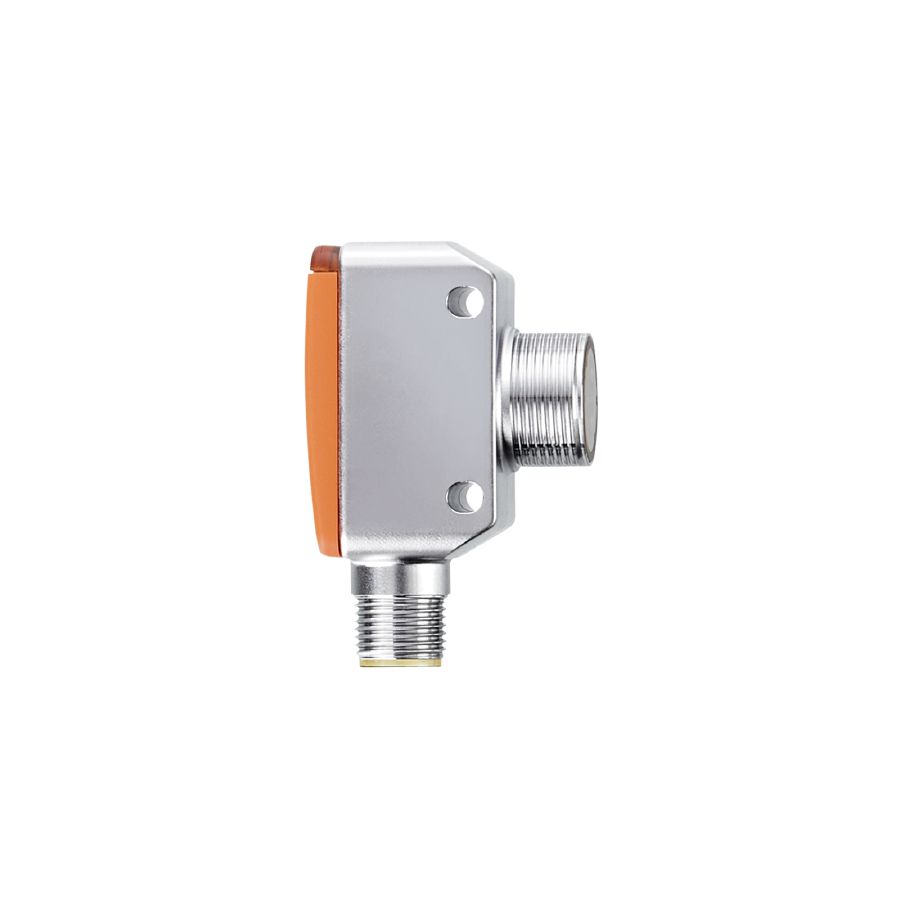

IFM Electronic OGS381 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (15m; 860nm)
Type of light: infrared light
Housing: rectangular
Function principle: Through-beam sensor
Operating voltage [V]: 10...30 DC
Rated insulation voltage [V]: 32
Current consumption [mA]: 17
Protection class: III
Reverse polarity protection: yes
Type of light: infrared light
Wave length [nm]: 860
Transmitter / receiver: transmitter
Range [m]: < 15
Max. light spot diameter [mm]: 200
Communication interface: IO-Link
Transmission type: COM2 (38,4 kBaud)
IO-Link revision: 1.1
SDCI standard: IEC 61131-9
Profiles: Smart Sensor: Device Identification, Device Diagnosis
SIO mode: no
Required master port type: A
Min. process cycle time [ms]: 2.5
IO-Link process data (cyclical): function: bit length; device status 4
IO-Link functions (acyclical): application specific tag; operating hours counter
Ambient temperature [°C]: -25...80
Storage temperature [°C]:: -40...80
Protection:: IP 65; IP 67; IP 68; IP 69K
Weight [g]:: 78.35
Dimensions [mm]:: 52.9 x 20 x 34.6
Thread designation: M18 x 1
Materials: 1.4542 (17-4 PH / 630); PEI
Lens material: PEI
Lens alignment: side lens
Display: operation 1 x LED, green
