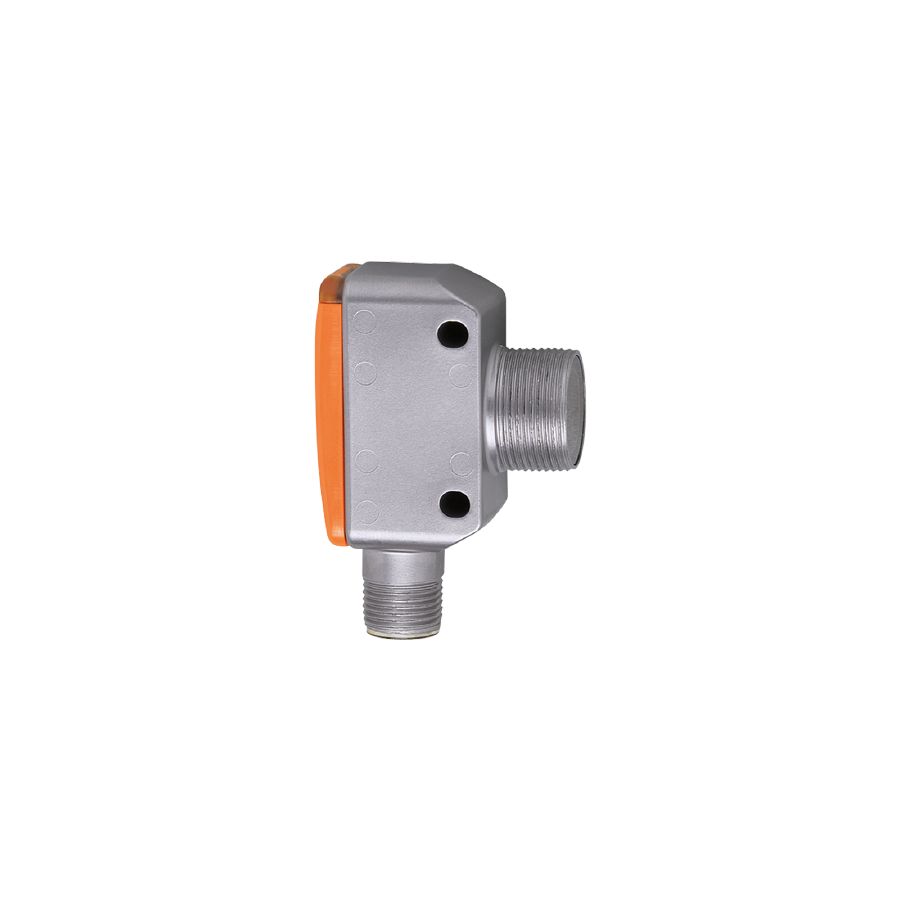

IFM Electronic OGS380 ຕອງຮັບສັນຍາ Through-Beam Sensor (15m; 662nm)

Type of light: red light

Operating voltage [V]: 10...30 DC

Rated insulation voltage [V]: 32

Current consumption [mA]: 17

Protection class: III

Reverse polarity protection: yes

Max. power-on delay time [ms]: 300

Wave length [nm]: 662

Transmitter / receiver: transmitter

Range [m]: 15

Max. light spot diameter [mm]: 800

Communication interface: IO-Link

Transmission type: COM2 (38,4 kBaud)

IO-Link revision: 1.1

Required master port type: A

Min. process cycle time [ms]: 2.5

Communication interface: IO-Link

Transmission type: COM3 (230,4 kBaud)

IO-Link revision: function: bit length; process value: 16; device status: 4;binary switching information 1

Required master port type: A

Min. process cycle time [ms]: 2.5

IO-Link process data (cyclical): function: bit length; device status: 4

IO-Link functions (acyclical): application specific tag; operating hours counter

Ambient temperature [°C]: -25...80

Storage temperature [°C]: -40...80

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]: 78

Dimensions [mm]: 52.9 x 20 x 34.6

Lens alignment: side lens

Display: operation 1 x LED, green
