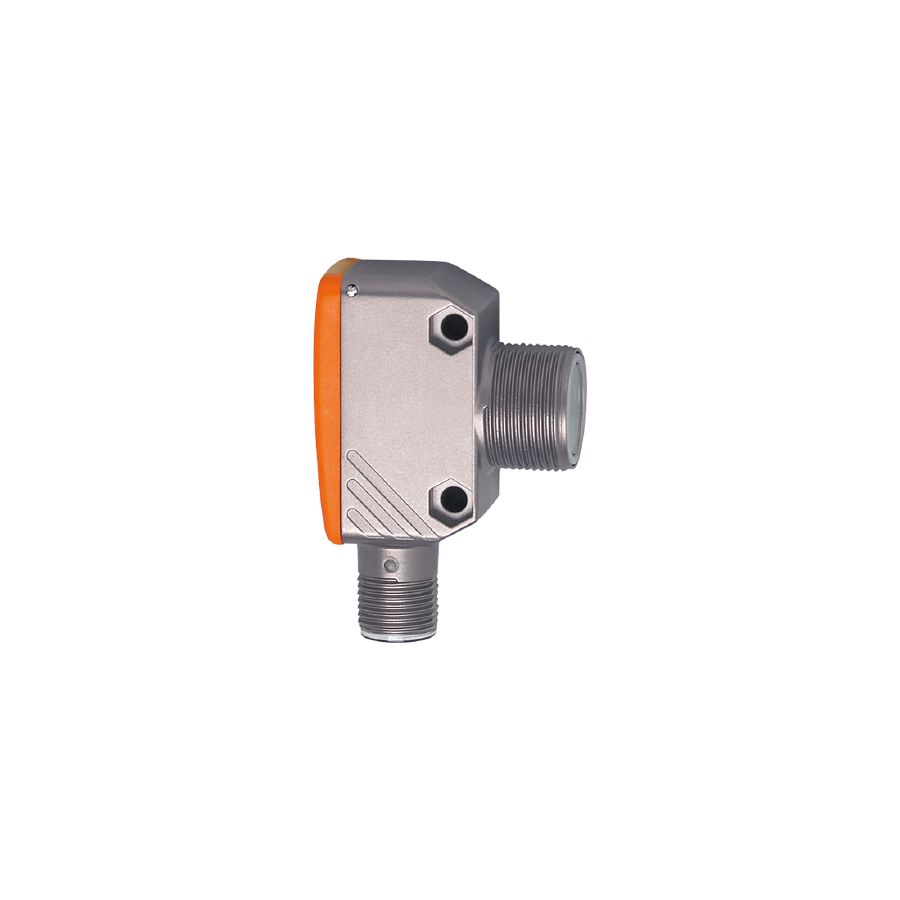

IFM Electronic OGS280 ຕອງຮັບສັນຍາ Through-Beam Sensor (20m)

Type of light: red light

Operating voltage [V]: 10...30 DC; (supply class 2 to cULus)

Rated insulation voltage [V]: 32

Current consumption [mA]: 17

Protection class: III

Reverse polarity protection: yes

Max. power-on delay time [ms]: 300

Wave length [nm]: 662

Transmitter / receiver: transmitter

Range [m]: 20

Max. light spot diameter [mm]: 800

Communication interface: IO-Link

Transmission type: COM2 (38,4 kBaud)

IO-Link revision: 1.1

SIO mode: no

Required master port type: A

Min. process cycle time [ms]: 2.5

Communication interface:  IO-Link

Transmission type:  COM3 (230,4 kBaud)

IO-Link process data (cyclical):  function: bit length; device status: 4

IO-Link functions (acyclical):  application specific tag; operating hours counter

Ambient temperature [°C]: -25...60

Storage temperature [°C]:  -40...60

Protection:  IP 65; IP 67

Weight [g]:  59.5

Dimensions [mm]:  52.6 x 19 x 36

Thread designation: M18 x 1

Lens alignment: side lens

Display: operation 1 x LED, green
