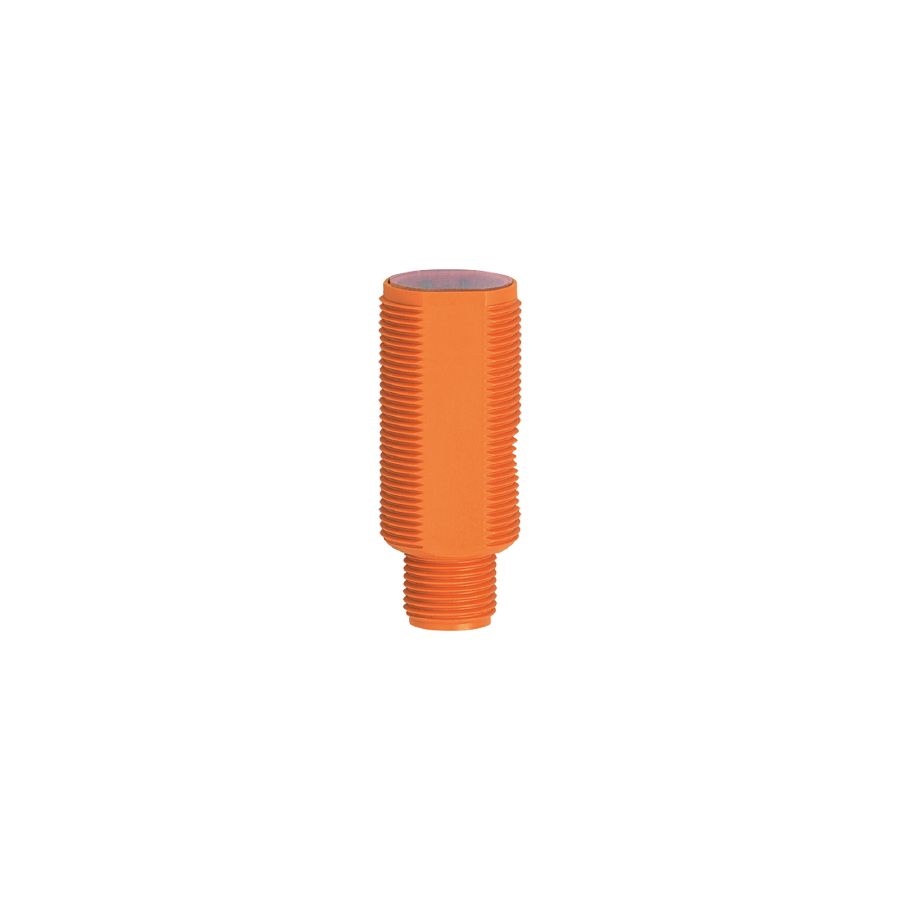

IFM Electronic OGS100 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (8m; 645nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 20

Protection class: III

Reverse polarity protection: yes

Wave length [nm]: 645

Transmitter / receiver: transmitter

Range [m]: < 8

Range adjustable: no

Max. light spot diameter [mm]: 600

Ambient temperature [°C]: -25...60

Protection: IP 67; (in conjunction with a corresponding connector)

Weight [g]: 14.3

Dimensions [mm]: M18 x 1 / L = 44

Materials: housing: ABS

Lens material: PMMA

Display: operation 1 x LED, green

Items supplied: lock nuts: 2 x

Connection: Connector: 1 x M12; coding: A
