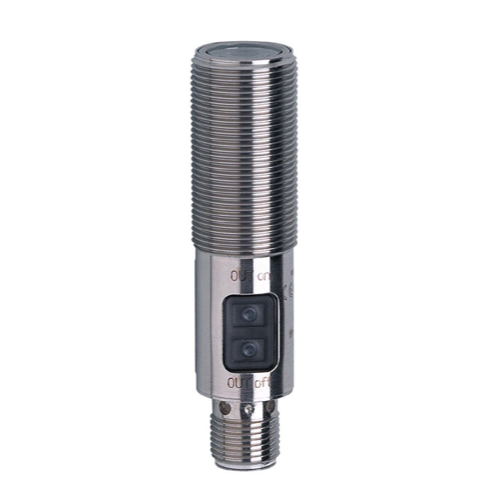

IFM Electronic OGH700 OGHLFPKG/US100 ເຊນເຊີວສະຫນາມສະຫຼຸບແສງແລະການສະຫນາມແສງເລຊີ (20~200mm)
Type of light: Red light
Housing: Threaded type
Special feature: Background suppression
Function principle: Diffuse reflection sensor
Rated insulation voltage [V]: 10...30 DC
Current consumption [mA]: 15
Protection class: II
Reverse polarity protection: Yes
Type timeline: 50000
Wavelength [nm]: 655
Electrical design: PNP
Output function: light/dark mode; (programmable)
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 1000
Short-circuit protection: Yes
Short-circuit protection type: Pulsed
Overload protection: Yes
Detection range [mm]: 20...200; (white paper 200 x 200 mm 90% remission)
Detection range on white object (90 % remission) [mm]: 20...200
Detection range on grey object (18 % remission) [mm]: 20...100
Detection range on black object (6 % remission) [mm]: < 100
Adjustment range: Yes
Light spot diameter max. [mm]: 1.2
Light spot reference size: at maximum range
Background suppression available: Yes
Ambient temperature [°C]: -10...60
Protection class: IP65; IP67
EMC: EN 60947-5-2
MTTF [years]: 485
Note on laser protection: laser class: 1
*: EN / IEC60825-1:2007
*: EN / IEC60825-1:2014
*: Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
Weight [g]: 62.3
Dimensions [mm]: M18 x 1 / L = 72
Thread design: M18 x 1
Material: stainless steel (1.4404/316L); PA; LCP; EPDM; TPU
Lens material: PMMA
Switching status indicator: 1 x LED, yellow
Accessories: 2 lock nuts
Connection: Connector: 1 x M12; coding: A
