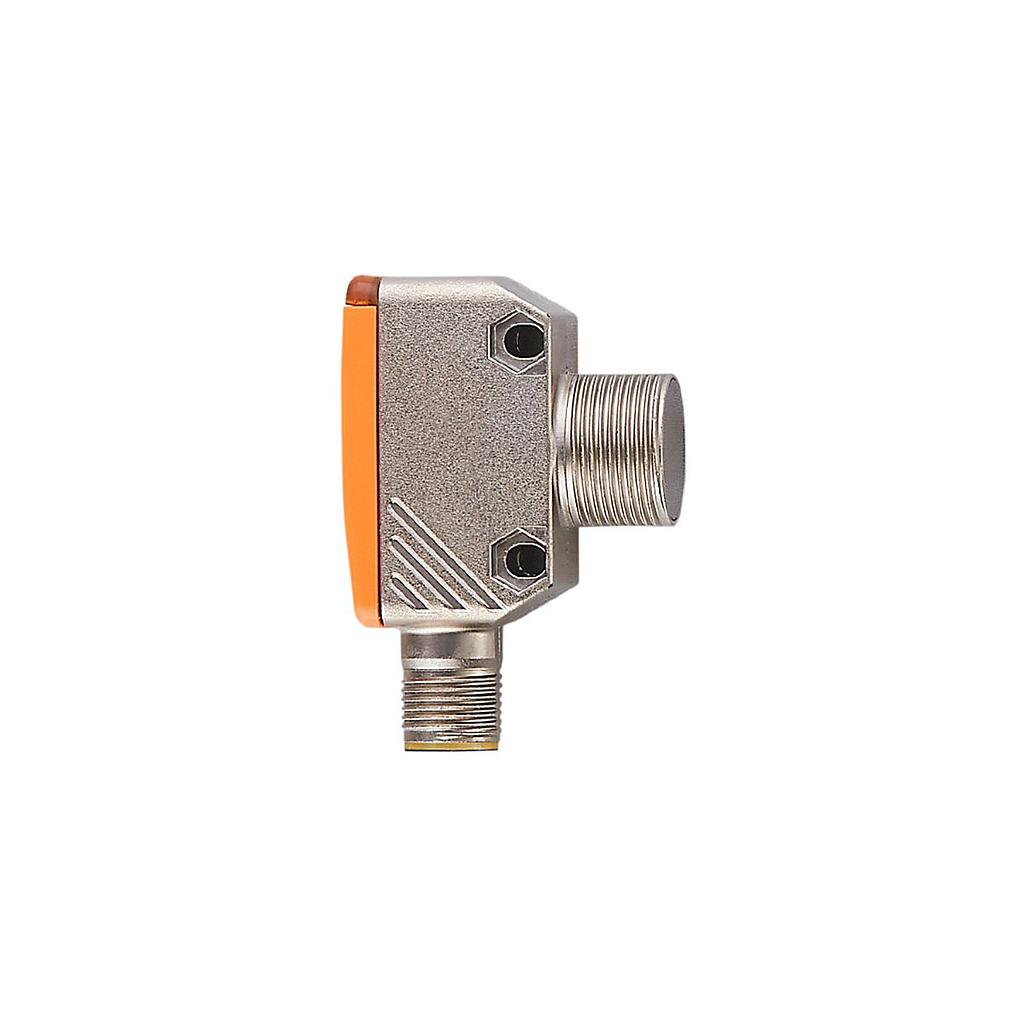

IFM Electronic OGH281 OGH-HPKG/US/CUBE/200MM ອຸປະກອນສັບສົມການສະຫຼຸບພື້ນຫຼັງດ້ວຍການສະຫຼຸບພື້ນຫຼັງ (< 200mm)
Type of light: red light
Housing: rectangular with M18 thread
Special feature: Background suppression
Function principle: Diffuse reflection sensor
Operating voltage [V]: 10...30 DC; ("Class 2 supply" for cULus)
Rated insulation voltage [V]: 32
Current consumption [mA]: 25
Protection class: III
Reverse polarity protection: yes
Power-on delay time max. [ms]: 300
Wavelength [nm]: 645
Electrical design: PNP
Output function: light-on mode
Max. voltage drop switching output DC [V]: 2.5
Continuous current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 1000
Short-circuit protection: yes
Short-circuit protection type: Pulsed
Detection range [mm]: < 200; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm]: < 200
Range on grey object (18 % remission) [mm]: < 200
Range on black object (6 % remission) [mm]: < 190
Adjustment range: no
Light spot diameter max. [mm]: 13
Reference light spot size: at maximum range
Background suppression available: yes
Communication interface: IO-Link
Transmission type: COM2 (38.4 kBaud)
IO-Link Revision: 1.1
SDCI standard: IEC 61131-9
Profile: Smart Sensor; Identification and Diagnosis; Process Data Channel; Teach Channel
SIO mode: yes
Required master port type: A
Minimum process cycle time [ms]: 10
IO-Link process data (cyclic): Function: Bit length
-Process value: 16
-Device status: 4
-Binary switching information: 1
IO-Link function (acyclic): specific application parameter; operating hours counter; switching cycles counter
Supported device IDs: Operating mode: Device ID | Default 1132
Ambient temperature [°C]: -25...60
Storage temperature [°C]: -40...60
Protection rating: IP65; IP67
EMC: EN 60947-5-2
MTTF [years]: 782
UL approval: TA -25...60 °C
-Enclosure: type 1
-Power supply: Class 2
-UL file number: E174191
Weight [g]: 58.5
Dimensions [mm]: 52.6 x 19.1 x 35.9
Thread design: M18 x 1
Material: diecast zinc; PEI
Lens material: PEI
Lens alignment: side lens
Switching status indicator: 1 x LED, yellow
Operating display: 1 x LED, green
Accessories: 1 lock nut
Connection: Connector: 1 x M12; coding: A
