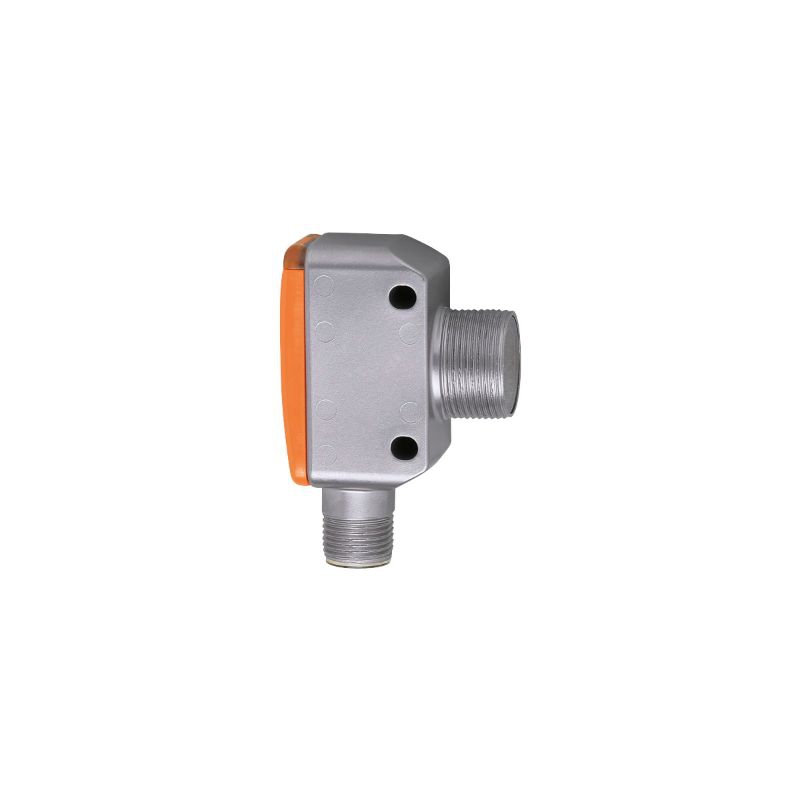

IFM Electronic OGE381 ຕອງຮັບສັນຍາ Through-Beam Sensor (15m; 662nm)

Type of light: red light

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 16

Protection class: III

Reverse polarity protection: yes

Wave length [nm]: 662

Electrical design: PNP

Output function: light-on mode

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Short-circuit protection: yes

Type of short-circuit protection: pulsed

Transmitter / receiver: receiver

Range [m]: < 15

Range adjustable: no

Communication interface: IO-Link

Transmission type: COM2 (38.4 kBaud)

IO-Link revision: 1.1

SIO mode: yes

Required master port type: A

Min. process cycle time [ms]: 2.5

IO-Link process data (cyclical): function: bit length; device status: 4; binary switching information: 1

IO-Link functions (acyclical): application specific tag; operating hours counter

Ambient temperature [°C]: -25...80

Storage temperature [°C]: -40...80

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]: 78

Dimensions [mm]: 52.9 x 20 x 34.6

Lens alignment: side lens

Display: operation 1 x LED, green
