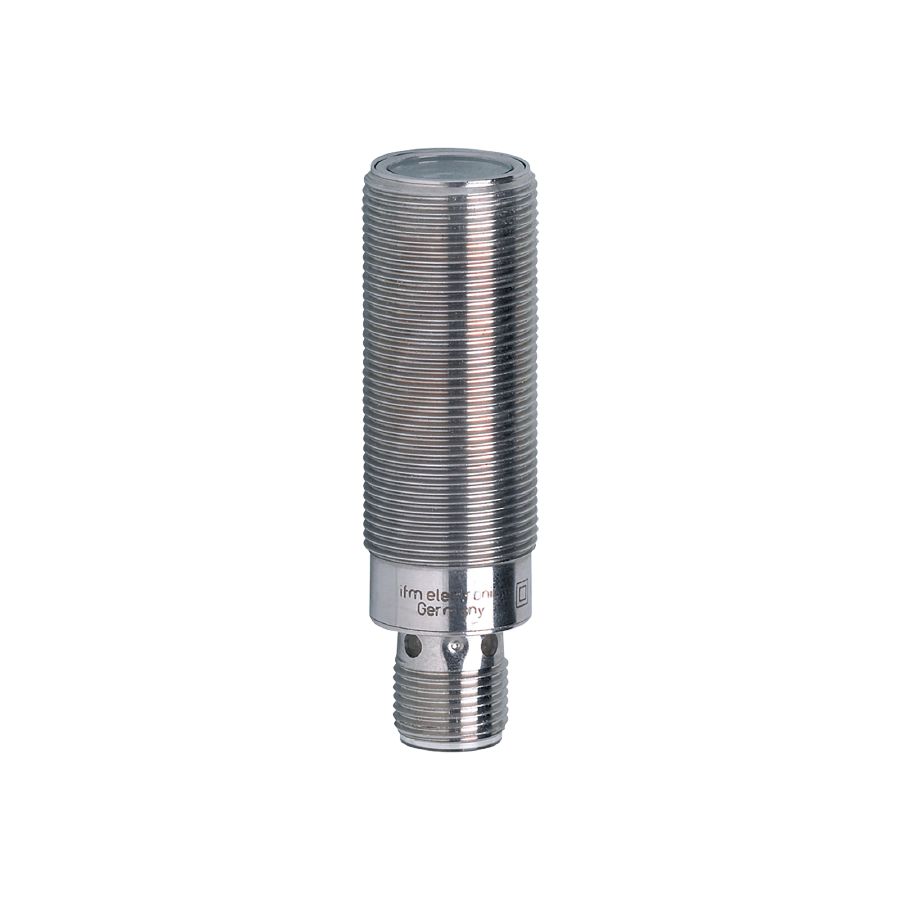

IFM Electronic OGE300 ຕອງຮັບສັນຍາ Through-Beam Sensor (20m; 624nm)

Type of light: red light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: 10

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 624

Electrical design: PNP

Output function: dark-on mode

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))

Switching frequency DC [Hz]: 1000

Short-circuit protection: yes

Type of short-circuit protection: pulsed

Overload protection: yes

Transmitter / receiver: receiver

Range [m]: < 20

Range adjustable: no

Ambient temperature [°C]: -25...80

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]: 59.8

Dimensions [mm]: M18 x 1 / L = 60

Materials: housing: stainless steel (1.4404 / 316L); Sealing: EPDM

Lens material: PMMA

Display: switching status 1 x LED, yellow

Items supplied: lock nuts: 2 x

Connection: Connector: 1 x M12; coding: A
