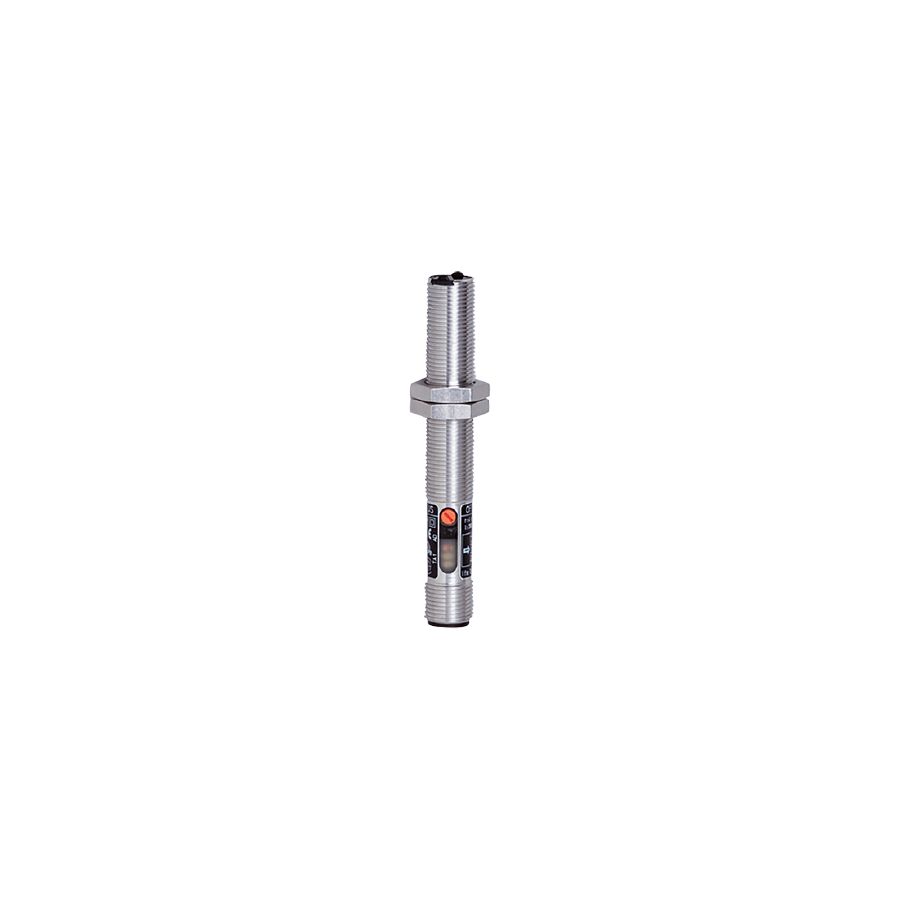

IFM Electronic OF5022 ຕອງຮັບສັນຍາ Through-Beam Sensor (4m; 880nm)

Type of light: infrared light

Housing: threaded type

Function principle: Through-beam sensor

Operating voltage [V]: 10...36 DC

Current consumption [mA]: < 30

Protection class: II

Reverse polarity protection: yes

Wave length [nm]: 880

Electrical design: PNP

Output function: light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Function check output: yes

Max. voltage drop of function check output [V]: 3.5

Max. current load for function check output [mA]: 10

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 320

Short-circuit protection: yes

Type of short-circuit protection: pulsed

Overload protection: yes

Transmitter / receiver: receiver

Range [m]: < 4

Range adjustable: yes

Ambient temperature [°C]: -25...60

Protection: IP 65

Weight [g]: 40.7

Dimensions [mm]: M12 x 1 / L = 74

Materials: housing: brass white bronze coated

Lens material: PMMA

Display: switching status: 1 x LED, yellow operation: 1 x LED, green function: 1 x LED, red
