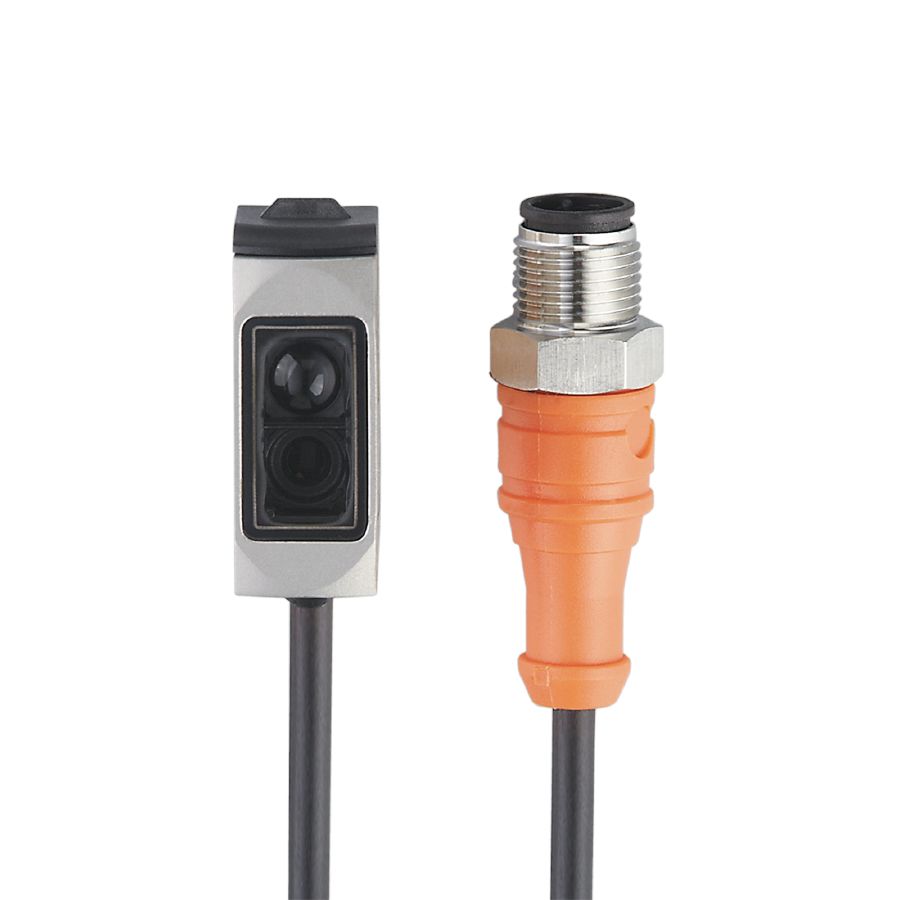

IFM Electronic O6S301 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (10m; 633nm)

Type of light: red light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 11; ((24 V))

Protection class: III

Wave length [nm]: 633

Transmitter / receiver: transmitter

Range [m]: < 10

Max. light spot diameter [mm]: 300

Ambient temperature [°C]: -25...80

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]:: 50.5

Materials: housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM

Lens material: PMMA

Lens alignment: side lens

Tightening torque [Nm]: 1; (screws)

Display: operation 1 x LED, green
