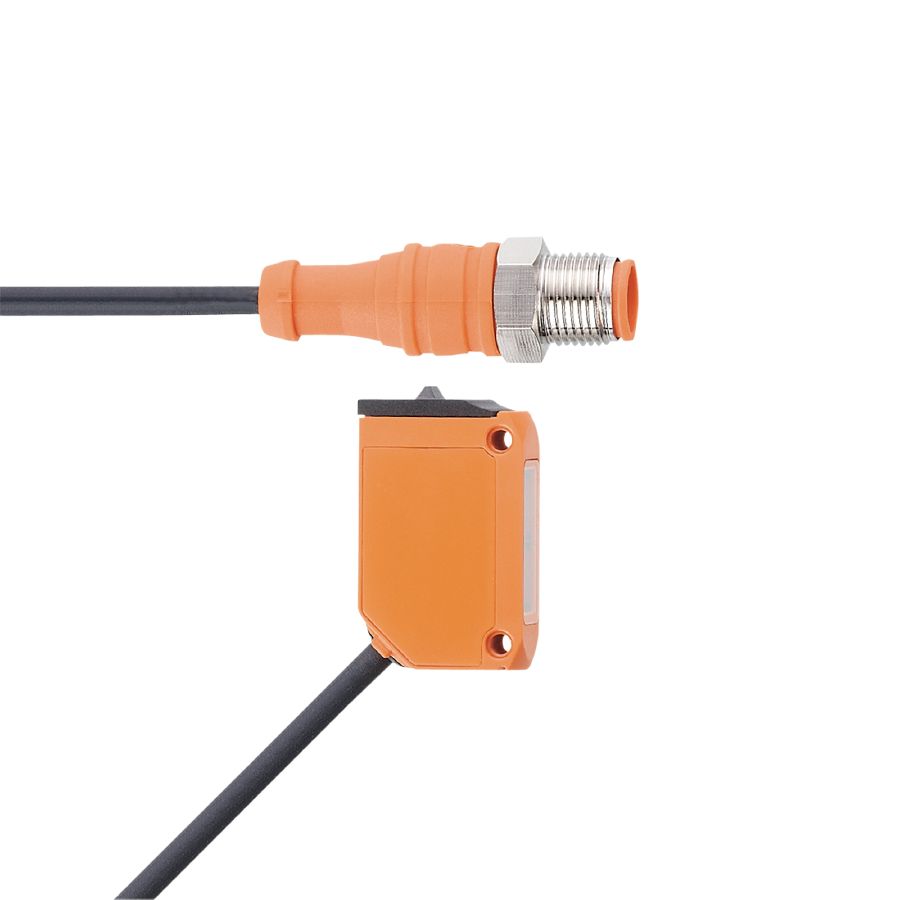

IFM Electronic O6S201 ຕົວສົ່ງສັນຍານອຸປະກອນສະແກນຜ່ານແຖວ (10m, 633nm)

Type of light: red light

Housing: rectangular

Function principle: Through-beam sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 11; ((24 V))

Protection class: III

Wave length [nm]: 633

Transmitter / receiver: transmitter

Range [m]: < 10

Max. light spot diameter [mm]: 300

Ambient temperature [°C]: -25...60

Protection: IP 65; IP 67

Weight [g]: 32.4

Dimensions [mm]: 35.4 x 13 x 21

Materials: housing: ABS; PPSU; Sealing: EPDM

Lens material: PMMA

Lens alignment: side lens

Tightening torque [Nm]: 0.5

Display: operation 1 x LED, green

Connection: Cable: 0.3 m, PUR; 2 x 0.25 mm²

Connection: Connector: 1 x M12; coding: A
