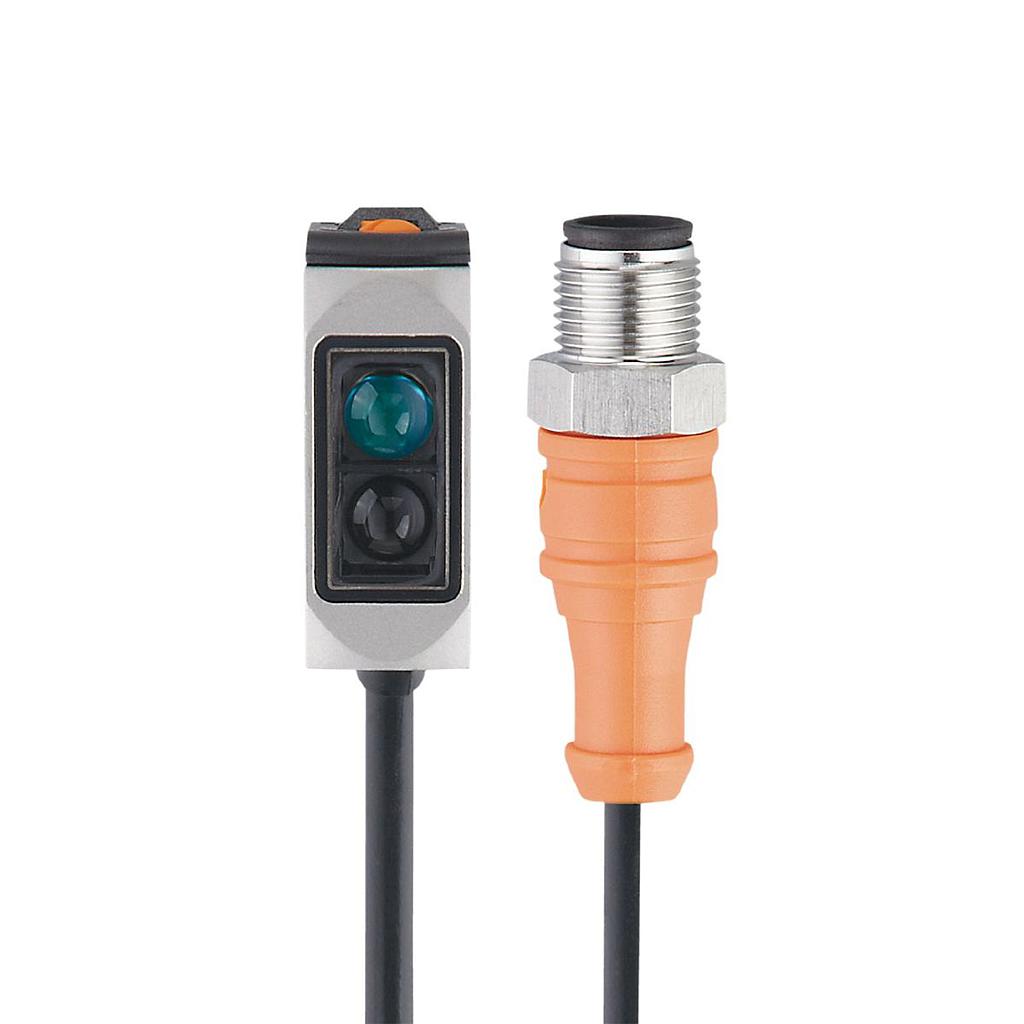

IFM Electronic O6H301 ອຸປະກອນສັບສົມການສະຫຼຸບພື້ນຫຼັງດ້ວຍການສະຫຼຸບພື້ນຫຼັງ (2...200mm; 633nm)

Light type: Red light

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 22; ((24 V))

Protection class: II

Reverse polarity protection: Yes

Wave length [nm]: 633

Electrical design: PNP

Output function: Light/Dark mode; (programmable)

Max. voltage drop switching output DC [V]: 2.5

Permanent current rating of switching output DC [mA]: 200

Switching frequency DC [Hz]: 1000

Fixed current rating of switching output DC [mA]: 100

Short-circuit protection: Yes

Short-circuit protection type: Pulsed

Sensing range [mm]: 2...200; (white paper 200 x 200 mm)

Sensing range on white object (90% remission) [mm]: 2...200

Sensing range on gray object (18% remission) [mm]: 4...200

Sensing range on black object (6% remission) [mm]: 8...200

Range adjustment: Yes

Maximum light spot diameter [mm]: 8

Reference light spot size: Range

Background suppression available: Yes

Ambient temperature [°C]: -25...80

Degree of protection: IP65; IP67; IP68; IP69K

Weight [g]: 51.4

Dimensions [mm]: 56 x 18.2 x 46.8

Lens alignment: Lateral lens

Tightening torque [Nm]: 1; (screw)

Switching status display: 1 x LED, yellow

Operating status display: 1 x LED, green

Connection: Cable: 0.3 m, PVC; 3 x 0.25 mm | Connector: 1 x M12; Coding: A
