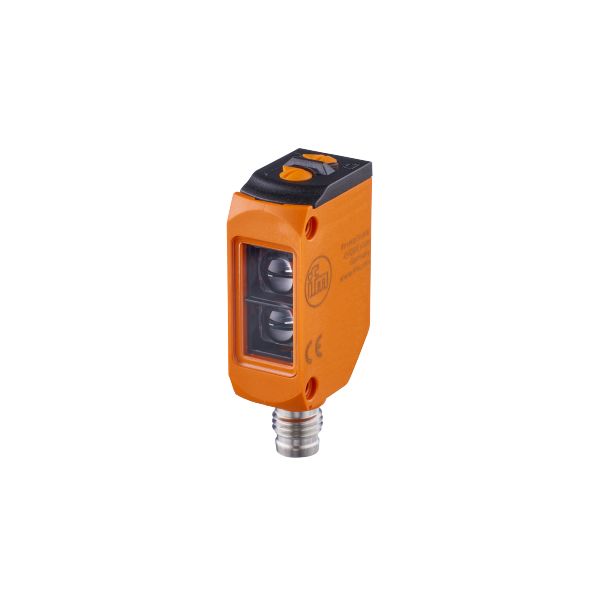

IFM Electronic O6H202 ອຸປະກອນສັບສົມການສະຫຼຸບພື້ນຫຼັງດ້ວຍການສະຫຼຸບພື້ນຫຼັງ (2~200mm; 633nm)

Light type: Red light

Housing: Rectangular

Special feature: Background suppression

Operating principle: Diffuse reflection sensor

Operating voltage [V]: 10...30 DC

Current consumption [mA]: 22; ((24V))

Protection class: III

Reverse polarity protection: Yes

Wavelength [nm]: 633

Electrical design: PNP

Output function: Light/dark mode (selectable)

Max. voltage drop of DC switching output [V]: 2.5

Rated continuous current of DC switching output [mA]: 100

Switching frequency DC [Hz]: 1000

Short-circuit protection: Yes

Type of short-circuit protection: Pulse

Measuring range [mm]: 2~200; (white paper 200 x 200 mm)

Measuring range on white object (reflectance 90%) [mm]: 2~200

Measuring range on gray object (reflectance 18%) [mm]: 4~200

Measuring range on black object (reflectance 6%) [mm]: 8~200

Adjustable measuring range: Yes

Max. light spot diameter [mm]: 8

Light spot size reference: at max. measuring range

Background suppression available: Yes

Ambient temperature [°C]: -25...60

Degree of protection: IP65; IP67

EMC: EN 60947-5-2

MTTF [years]: 683

UL approval: UL approval No. E001

Weight [g]: 18.3

Dimensions [mm]: 46 x 13 x 21

Thread design: M18 x 1

Material: Housing: ABS; PPSU

Lens material: PMMA

Lens alignment: Side lens

Tightening torque [Nm]: 0.5

Switching status display: 1 x LED, yellow

Operation display: 1 x LED, green

Note: Operating voltage supply type 2 according to cULus

Connection: Connector: 1 x M8; Coding: A; Locking: Brass, nickel-plated; Sealing: EPDM
