(Full specifications can be found on datasheet)
Set of nine, ten or eleven resistors - 1 kΩ, 10 kΩ, 100 kΩ,1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ and 10 TΩ , open circuit (Depending on model)
High Accuracy - up to 20 ppm
Standard voltage: up to 5 kV (voltages of 10 kV are available)
Excellent for calibration of Meggers
(See datasheet for full specifications)
|
Nominal Value
|
Stability (ppm/year)
|
Max Voltage (V)
|
Adjustment Accuracy
|
TC (ppm/C)
|
10 kV Option Max. Voltage (V)
|
|
1 kΩ
|
10
|
50
|
20 ppm
|
3
|
50
|
|
10 kΩ
|
10
|
150
|
20 ppm
|
3
|
150
|
|
100 kΩ
|
10
|
500
|
20 ppm
|
3
|
500
|
|
1 MΩ
|
15
|
1250
|
20 ppm
|
5
|
1250
|
|
10 MΩ
|
20
|
5000
|
50 ppm
|
15
|
5000
|
|
100 MΩ
|
100
|
5000
|
100 ppm
|
25
|
10000
|
|
1 GΩ
|
500
|
5000
|
0.5%
|
25
|
10000
|
|
10 GΩ
|
500
|
5000
|
0.5%
|
50
|
10000
|
|
100 GΩ
|
500
|
5000
|
1%
|
50
|
10000
|
|
1 TΩ
|
500
|
5000
|
2%
|
100
|
10000
|
|
10 TΩ
|
5000
|
5%
|
300
|
10000
|
Dimensions: 31.2 cm W x 11.4 cm H x 12.7 cm D (12.3" x 4.5"x5")
Weight: 2 kg (4.5 lb)

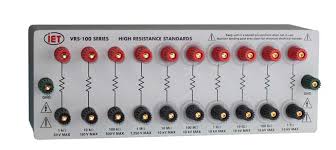

An economical set of precision high resistance standards designed for testing meggers or other instruments; 9 or 10 values up to 10 TΩ with special Kel-F isolation
Two user versions available:
The standard VRS-100 features a maximum voltage of 5 kVDC for values above 10 Mohms. An (-10kV) option is available for 10 kVDC maximum voltage for resistance values above 100 Mohms.
The VRS-100 Series can be custom made to put any set of resistance values from 0.01 Ω - 10 T Ω. in 1 housing. For example we can put a 5T Ω resistance standard in a unit. Units can be made with as few as 3 values and as many as 11 resistance values.
Please contact our sales staff if you have a custom requirement.
