IETLAB RCS Series Resistance & Capacitance Box (0.1% -4%; 100 pF - 100 µF; 1 Ω - 10 MΩ )
(Full specifications can be found on datasheet)
Combination of Resistance and Capacitance Deacade Box
Accurate 0.1% to 4% (Depending on Model)
Capacitance Range 100 pF - 100 µF
Resistance Range 1 Ω - 10 MΩ
Compact, convenient, and rugged
Now Includes a NIST Traceable Calibration Certificate
Direct reading and Error proof:
Color coded
Two models available RCS-500 and RCS-502, RCS-502 is more accurate
RCS Series Decade Box Basic Specifications (See datasheet for full specifications)
| Model |
RCS-500
|
RCS-502
|
||
| Combines |
RS-200
|
CS-300
|
RS-201
|
CS-300
|
| Type |
Resistance
|
Capacitance
|
Precision Resistance
|
Precision Capacitance
|
| Resistance Accuracy |
±(1%+25 mΩ)
|
±(4%+3 pF)
|
±(0.1%+25 mΩ)
|
±(4%+3 pF)
|
| Decades |
7
|
6
|
7
|
6
|
| Range |
0 - 9,999,999 Ω
|
0- 99.999 9 µF
|
0 - 9,999,999 Ω
|
0- 99.999 9 µF
|
| Resolution |
1 Ω
|
100 pF
|
1 Ω
|
100 pF
|
| Ratings |
0.5 W (rising to 2.5 W at step 9)
|
100 V (25 V for 10 - 100 μF)
|
0.5 W (rising to 2.5 W at step 9)
|
100 V (25 V for 10 - 100 μF)
|
| Residual |
≤0.39 Ω (≤0.056 Ω/decade)
|
≤42 pF (≤7 pF/decade)
|
≤0.39 Ω (≤0.056 Ω/decade)
|
≤42 pF (≤7 pF/decade)
|
|
Physical
|
18.8 x 11 x 6 cm, 410 g (7.4 x 4.3 x 2.4 in, 14 oz)
|
|||

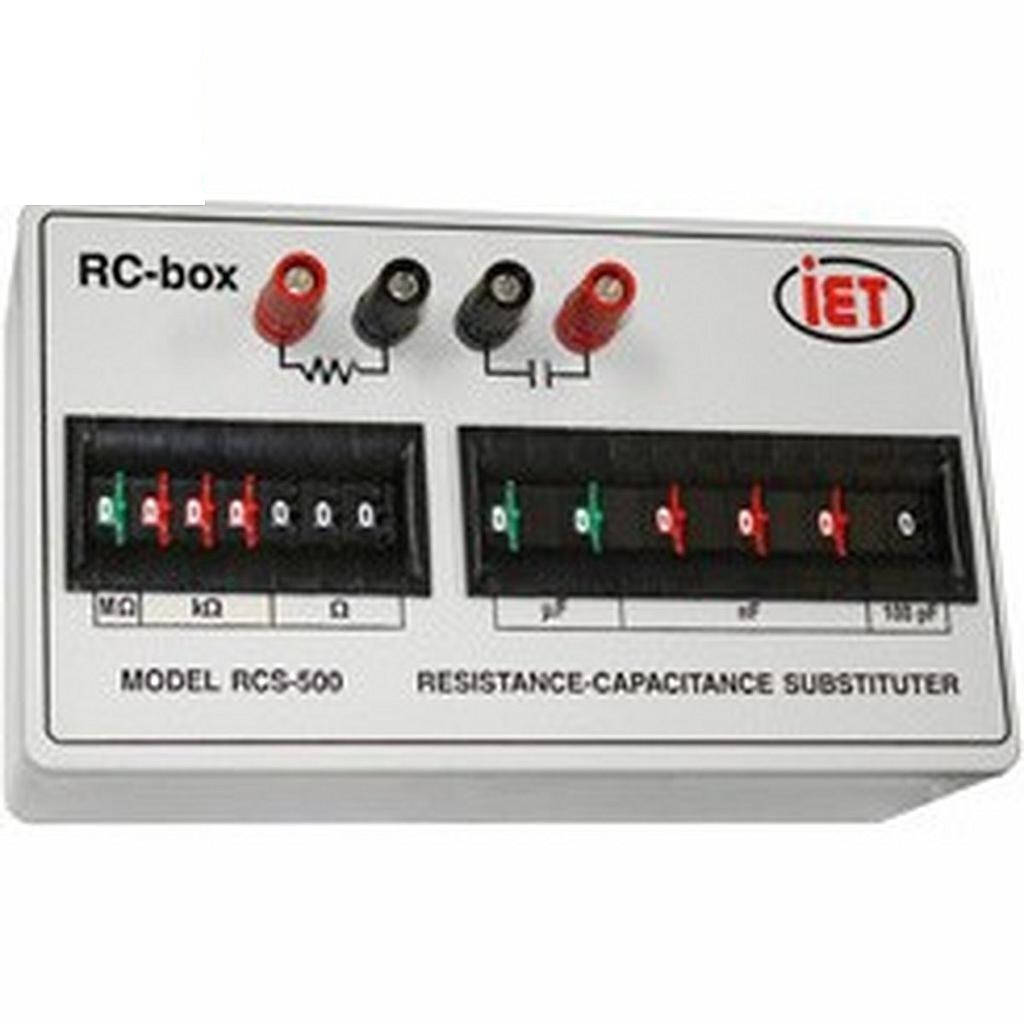

The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for setting timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.
One nice feature of the RCS Series is that it uses convenient side by side, color coded, thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!
Made of high impact plastic and weighing less then a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
