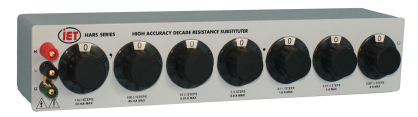

IET LABS HARS-X-6-0.01+ ISO-17025 High Accuracy Decade Resistance Substituter (11.1111kΩ , 0.01Ω, 6 decades, option ISO-17025)
Total resistance: 11.1111 kW
Number of decades: 6
Resolution: 0.01 W
Accuracy:
≤1 MΩ decades: ±(0.01% + 2 mΩ)
10 MΩ decades: ±0.03% after subtraction of zero resistance, at 23°C; traceable to SI
Zero resistance:
≤1 MΩ decades: <1 mΩ per decade at dc
10 MΩ decade: ≈3 mΩ at dc
Max voltage to case:
2000 V peak
Environmental conditions:
Operating: 10°C to 40°C; <80% RH
Storage: -40°C to 70°C
Switches:
Continuous rotation
11 positions marked "0"-"10"
Multiple solid silver-alloy contacts
Switch capacitance:
<1 pF between contacts
Terminals: 3 terminals, High, Low, and GND via gold-plated, 5-way, tellurium-copper binding posts with low thermal emf and low resistance.
-K option with 5 terminals for Kelvin connection is available as an option to reduce zero resistance.
-K option is not available for 1 decade housing.
-RO Rear outputs are available as an option
