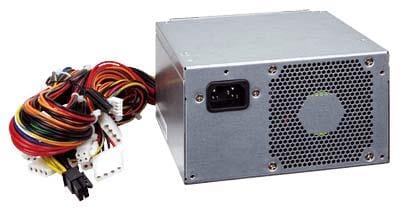

IEI Technology 63010-010600-010-RS ເຊັດຊິ້ງ ພາວເລີ້ມ PS/2 Power;FSP;FSP600-80PSA(SK);9PA6009824;Active PFC;Vin:90-264VAC;600W;150*140*86mm;;;meet 80plus(BRONZE);Vout:ATX;ATX;CCL;RoHS

Width: 140 mm (5.512 in)

Height: 86 mm (3.386 in)

Length: 150 mm (5.906 in)

Industry: Industrial

Efficiency: 82 %

Output Power: 600 W

Input Voltage: 90 VAC to 265 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 5 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 25 A

Output Current-Channel 2: 25 A

Output Current-Channel 3: 16 A

Output Current-Channel 4: 500 mA

Output Current-Channel 5: 500 mA

Output Voltage-Channel 1: 3.3 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12 VDC

Output Voltage-Channel 4: - 12 VDC

Output Voltage-Channel 5: - 5 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
