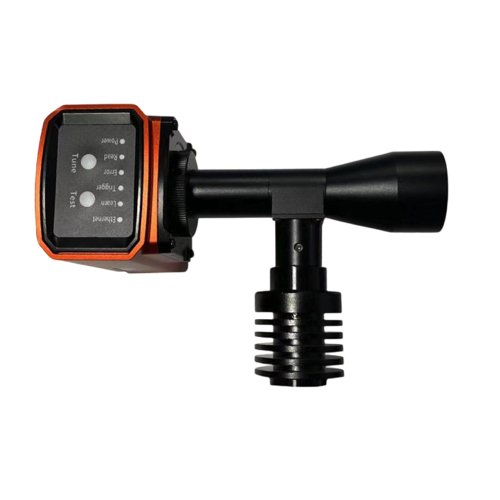

ICW ICW75V ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (60mm)
Dimensions (mm): 80 × 50 × 129 (Width × Height × Depth)
Weight: 238g
Power supply mode: 5-30VDC ±10%, 500mA
System architecture: Linux
Sensor type: Global Shutter CMOS
Frame rate: 60FPS
Pixel: 1280 pixels (H) × 800 pixels (V)
Reading distance: 60mm
Power consumption: Peak <5W, Average 3W
Interface supports: RS-232, RS-485, USB-virtual-COM, USB-keyboard, Ethernet, Modbus, Profinet
External input: Two-channel photoelectric isolation input, can be connected to NPN, PNP, relay
External output: Three optical isolation output
Support one-dimensional barcode (1D): Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC, EAN, etc.
Support two-dimensional barcode (2D): Vericode, PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.
Working temperature: 0℃ to 50℃
Storage temperature: -40℃ to 70℃
Humidity: 0% to 90% relative humidity (non-condensing)
Recognition accuracy: Min. 2mil
Safety level: EAN62471:2008
EMC electromagnetic interference: EMC electromagnetic compatibility: EN55032
Protection grade: IP65
ESD electrostatic protection level: EN55024, contact discharge: 8kV, coupling discharge: 15kV+
RF anti-interference: IEC61000-4-3, 10V/m
Artificial light immunity: 100,000LUX
Seismic resistance: Can withstand the impact of multiple drops to the concrete floor from a height of 1.5 meters (5° deflection allowed)
Certification: CE, FCC, RoHS
