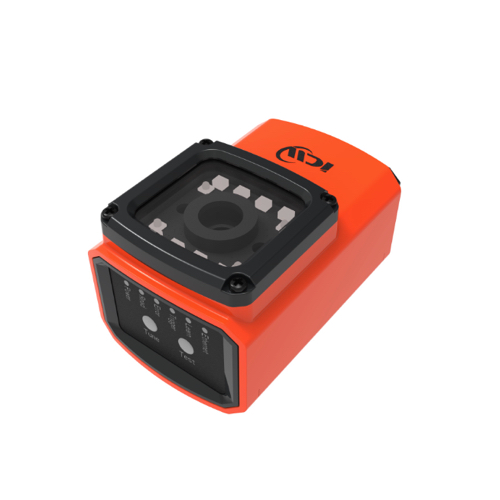

ICW ICW75L ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (30mm, 70mm, 100mm, 150mm)
Size (mm): 80 x 50 x 45 (Width x Height x Depth)
Weight: 205.7g
Power supply mode: 5-30VDC ±10%, 500mA
Function module: Dome illumination
System architecture: Linux
Sensor type: Global Shutter CMOS
Frame rate: 60FPS
Pixel: 1280 pixels (H) x 800 pixels (V)
Read distance: 30mm, 70mm, 100mm, 150mm
Power consumption: Peak <5W, Average 3W
Interface support: RS-232, RS-485, USB-virtual-COM, USB-keyboard, Ethernet, Modbus, Profinet
External input: Through the photoelectric isolation input, can answer the NPN and PNP, relay
External output: Three way photoelectric isolation output
Support 1D barcode: Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC, EAN, etc.
Support 2D barcode: PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, Vericode, etc.
Working temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C
Humidity: 0% to 90% Relative humidity (no condensation)
Identification accuracy: Min. 2mil
Security level: Light safety: EAN62471:2008
EMC electromagnetic interference: EMC electromagnetic compatibility: EN55032
Protection grade: IP65
ESD electrostatic protection grade: EN55024, Contact discharge: 8kV, Coupling discharge: 15kV+
Radio frequency interference: IEC61000-4-3, 10V/m
Artificial light immunity: 100,000LUX
Vibration resistance: Can withstand multiple 1.5 meters height to the impact of the cement floor (allow deflection 5°)
Certification: CE, FCC, RoHS
