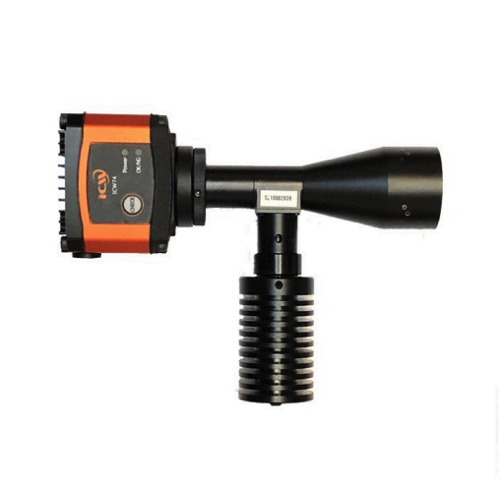

ICW ICW74V ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (60mm)
Size (mm): 52.5 × 143.75 × 28.9 (Width × Height × Depth)
Weight: 247g
Power supply: 5-30VDC ±10%, 500mA
System structure: ARM926
Sensor type: Global Shutter CMOS
Frame rate: 60FPS
Pixel: 1280 pixels (H) × 800 pixels (V)
Image color: Mono
Configuration: Read challenging 1D/2D codes/DPM codes/Vericode codes
Reading distance: 60mm
Power consumption: Peak <2.5W, Average 2W
Interface support: RS-232, USB-virtual-COM, USB-keyboard, Ethernet
External input: One photoelectric isolation input, can be connected to NPN, PNP, relay
External output: One photoelectric isolation output Support one-dimensional barcode (1D): Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC, EAN, etc.
Support two-dimensional barcode (2D): Vericode, PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.
Operating temperature: 0℃ to 50℃
Storage temperature: -40℃ to 70℃
Humidity: 0% to 90% relative humidity (no condensation)
Recognition accuracy: Min. 2mil
Security level: Light safety: EAN62471:2008
EMC electromagnetic interference: EMC electromagnetic compatibility: EN55032
Protection level: IP65
ESD protection level: EN55024, contact discharge: 8kV, coupling discharge: 20kV+
RF anti-interference: IEC61000-4-3, 10V/m
Artificial light immunity: 100,000LUX
Shock resistance: Can withstand the impact of multiple drops to the concrete floor from a height of 1.5 meters (allowing 5° deflection)
Certification: CE, FCC, RoHS
