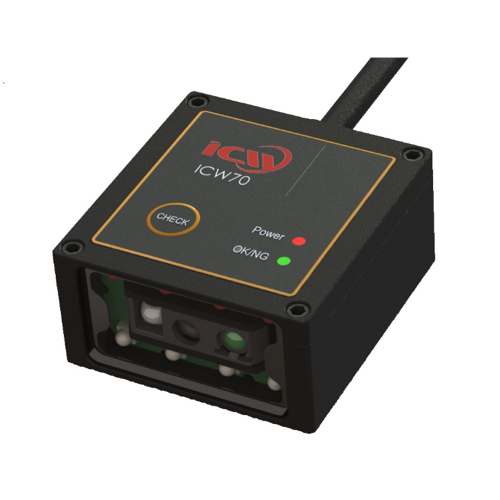

ICW ICW70N ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (30mm, 70mm, 100mm, 150mm; 22°)
Size (mm): 44.0 x 44.9 x 22.4 (Width x Height x Depth)
Weight: 145.8g
Voltage: 5-36VDC (support USB power supply)
Frame rate: 60FPS
Pixel: Global Shutter CMOS, 640 pixels (H) x 480 pixels (V)
Field of view: 22°
Reading distance: 30mm, 70mm, 100mm, 150mm
Power consumption: Peak <2.3W, Average 2W
Interface support: RS-232, USB-virtual-COM, USB-keyboard,
External input: One photoelectric isolation input, can be connected to NPN, PNP, relay
External output: One photoelectric isolation output
Support one-dimensional barcode (1D): Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, UPC, EAN, etc.
Support two-dimensional barcode (2D): PDF 417, MicroPDF 417, DataMatrix, Maxicode, QR code, MicroQR, Aztec, Hanxin, etc.
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 50°C
Humidity: 0% to 90% relative humidity (no condensation)
Recognition accuracy: Min. 3mil
Security level: Light safety: EAN62471:2008
EMC electromagnetic interference: EMC electromagnetic compatibility: EN55032
Protection level: IP54
ESD protection level: EN55024, Contact discharge: 8kV, coupling discharge: 20kV+
RF anti-interference: IEC61000-4-3, 10V/m
Artificial light immunity: 100,000LUX
Shock resistance: Can withstand the impact of multiple drops to the concrete floor from a height of 1.2 meters (5° deflection allowed)
