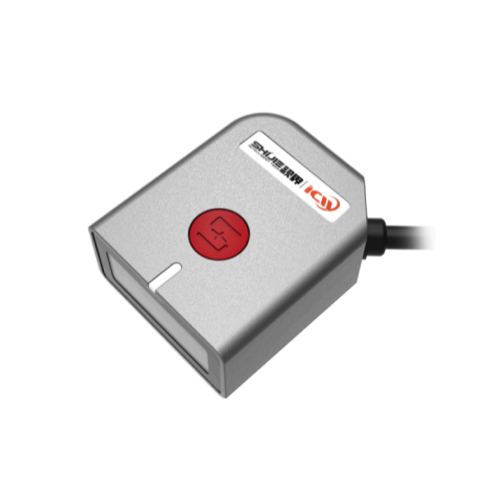

ICW ICW61 ອ່ານບາໂຄດຕົວຢ່າງຖືກຕັ້ງ (22° / 40)
Image Sensor: Global shutter, 640 × 480, 60FPS
Lens angle of view: 22° / 40°
Light source: Highlight red light source, highlight blue light source, highlight white light source
Supported one-dimensional symbologies: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC
Supported QR code system: QR, DataMatrix, PDF417, Aztec
Region decoding: Support 8 ROI region decoding
Interface communication: RS232, USB2.0, Ethernet (TCP/DUP/Modbus)
External input: 1 input (photoelectric isolation), can be connected to NPN/PNP/relay
External output: 1 input (photoelectric isolation)
Powered by: 5-36VDC (support USB power supply)
Power consumption: 2.3W max
Reliability:
Temperature range: Working temperature: 0°C ~ 50°C, Storage temperature: -20°C ~ 70°C
ESD protection: Contact discharge: 15kV, Coupling discharge: 20kV+
Shell protection: IP54
Environment brightness: 0–100,000 Lux
Fall: 1.2 meters concrete floor, free fall, 6 sides × 5 times = 30 times
Physical characteristics:
Size: 48mm × 40mm × 22mm (Length × Width × Height)
Weight: 63g
Shell material: PC+ABS
