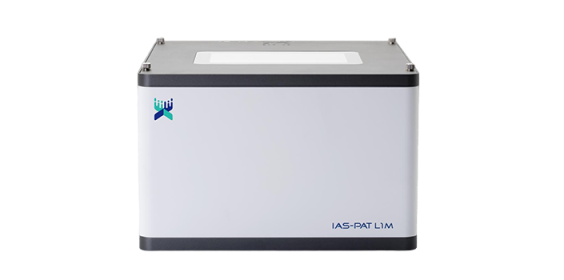

IAS Analysis IAS-PAT L1M ເຄື່ອງວິເຄາະ NIR ທາງອອນລາຍ (900 – 1700 nm)
Wavelength Range (NIR): 900 – 1700 nm
(Typically used: 950 – 1650 nm)
Resolution: < 16 nm
Spectroscopic Principle: Grating
Detector: InGaAs Detector (256 pixels)
Baseline Noise: ≤ 0.0002 AU
Wavelength Repeatability: ≤ 0.1 nm
Wavelength Accuracy: ≤ 1 nm (with built-in auto-detection & calibration)
Absorbance Repeatability: ≤ 0.0002 AU
Detection Time: 0.1 – 60 s
Light Source: Integrating Sphere Tungsten Halogen Lamp
Auto-Calibration & Maintenance: Automatic wavelength calibration; Reference calibration
Dimensions: L 310 mm × W 340 mm × H 210 mm
Main unit: 14 kg
Explosion-proof cabinet: 54 kg
Power Supply: 100 – 240 VAC, 50 Hz
System & Environment
Display: 7-inch
Built-in Operating System: Linux
Vibration Resistance: 0.3 g @ 0.1 – 200 Hz
Operating Temperature: -30 – +45°C
Operating Humidity: < 90% RH
