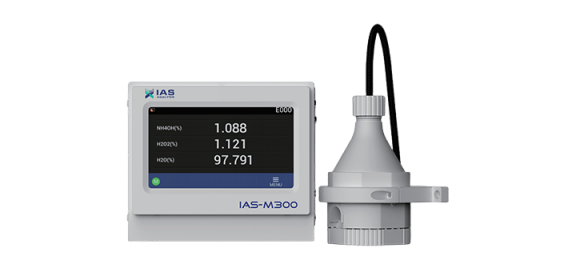

IAS Analysis IAS-M300 ເຄື່ອງຕິດຕາມຄວາມເຂັ້ມຂຸ້ນຂອງສານເຄມີ (NH₃: 0–2%; H₂O: 15–45%; Fluoride: 0–2%)
Measurement sample: 9058 / 960H
Measurement principle: Spectral Absorption Method
Measurement range:
9058: NH₃: 0–2%, H₂O: 25–45%
960H: Ammonia: 0–2%, H₂O: 15–36%, Fluoride: 0–2%
For additional measurement ranges, contact IAS.
Reproducibility:
9058: NH₃: ±0.25%, H₂O: ±0.3%
960H: Ammonia: ±0.25%, H₂O: ±0.3%, Fluoride: ±0.25%
Chemical pressure: <0.20 MPa
Chemical temperature: 20–45°C
Wetted materials: PFA
Ambient temperature:
Host: 20–30°C
Measurement unit: 20–35°C
Avoid sudden ambient temperature changes (≤±1°C/hour)
Ambient humidity: <70% (non-condensing)
Power supply: 24V DC ±10%, ~20W
Dimensions:
Host: 202 (W) × 272 (D) × 176 (H) mm
Measurement unit: 141 (W) × 110 (D) × 162 (H) mm
Weight:
Host: ~5.9 kg
Measurement unit: ~0.8 kg (customizable according to on-site working conditions)
Connection pipe size:
Chemical path: External piping (3/4 inch)
Gas path: 4 mm O.D. quick-connect plug
Slanting angle at installation:
Host: ±1°
Measurement unit: Ensure chemical flows in from bottom and out from top after connection
Optical fiber:
Fiber length: 10 m
Bending radius: R 200 mm
