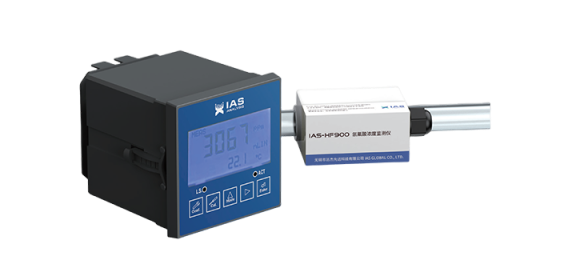

IAS Analysis IAS-HF900 ເຄື່ອງຕິດຕາມຄວາມເຂັ້ມຂຸ້ນຂອງສານເຄມີ (HF 0–20,000 ppm; 0–50 mS/cm; 0–100°C)
Method: Conductivity / Concentration Conversion
Range: HF 0–20,000 ppm; Conductivity 0–50 mS/cm; Temperature 0–100°C
Accuracy: ±0.5% FS
Repeatability: ±0.5% FS; 0–5,000 ppm: ±25 ppm; 0–10,000 ppm: ±50 ppm; 0–15,000 ppm: ±75 ppm; 0–20,000 ppm: ±100 ppm
Electrode Coefficient: ~4.99
Temperature Sensor: Pt1000; 3750 ppm/°C
Analog Output: 2 × 4–20 mA; load ≤500 Ω
Relay Output: 3 relays; alarm; cleaning; control
Communication: RS-485
Calibration: Concentration; Conductivity; Temperature
Temperature Compensation: 0–3%/°C; reference 25°C
Diagnostics: Sensor error; out-of-range; system error
Hold Function: Last value hold / set value
Temp: -5–45°C; Humidity: 20–85% RH (non-condensing)
Power: 24 VDC ±10%; ≤10 W
Protection: IP65; panel mount
Weight: ~400 g
Compliance: SEMI S2; F47; CE; UL
Compatible Sensor: IAS-HF900
