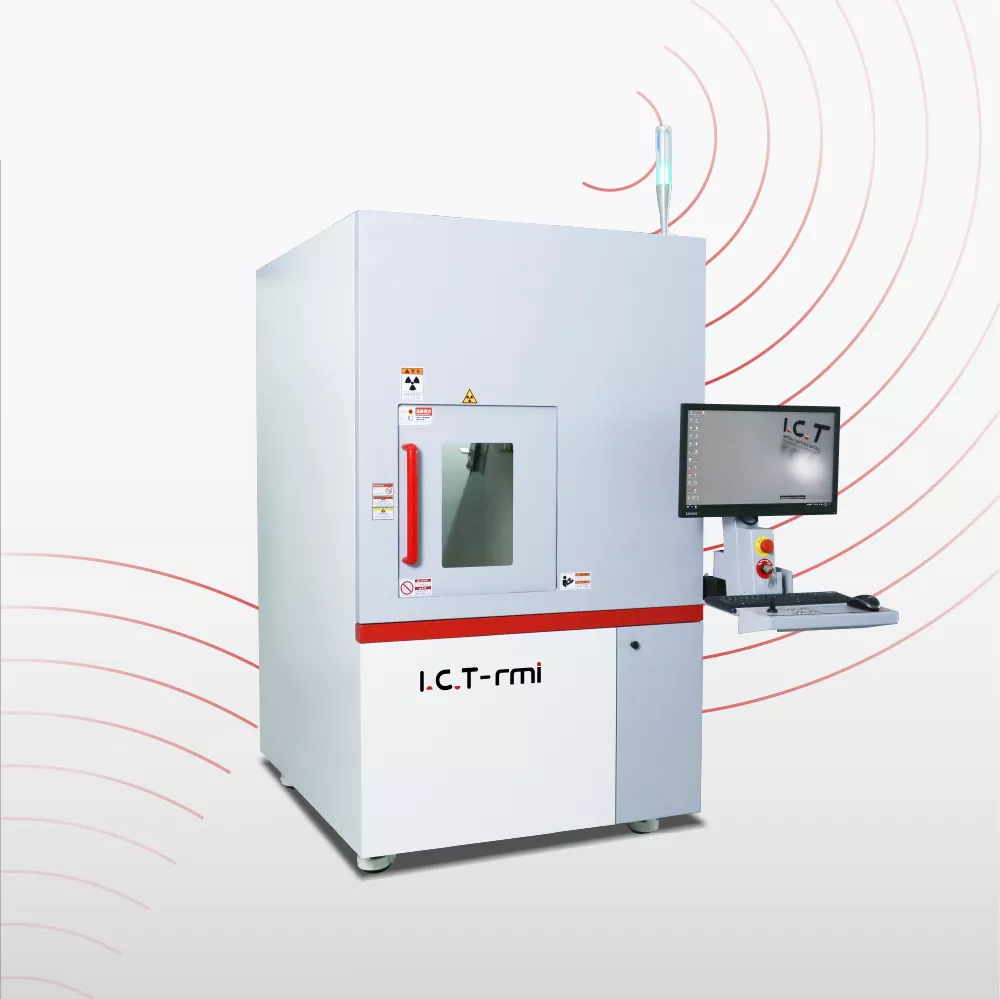

I.C.T X-8000 ອັດຕະໂນມັດ Offline SMT PCB X-ray ເຄື່ອງກວດກາ

X-Ray Tube:

Type: Enclosed reflective target microfocus X-ray source

Voltage: 130kV

Electric current: 300uA

Focal spot size: 3μm

Maximum input power: 39W

X-ray beam angle (cone): 105 degree

Distance from focus to object: 10mm

Flat panel:

Imaging area: 160mm*160mm

Photosensitive unit size: 85μm

Resolution: 1644*1648px

Detector tilt angle: 0-60°

Image frame rate (1×1): 30fps

Platform:

Max. Loading size: 540mm*540mm

Max. Inspection area: 510mm*510mm

Max. Loading weight: 10kg

Platform rotation: 360° platform rotation (Optional)

Machine:

Inner lead sheet: 5mm thick lead plate (isolation radiation)

Dimension: 1110mm(L)*1350mm(W)*2000mm(H)

Weight: 1050KG

Computer: 24-inch widescreen LCD monitor/I5 processor/4G memory/250G hard disk

Power: AC110/220V, 10A, 1300W
