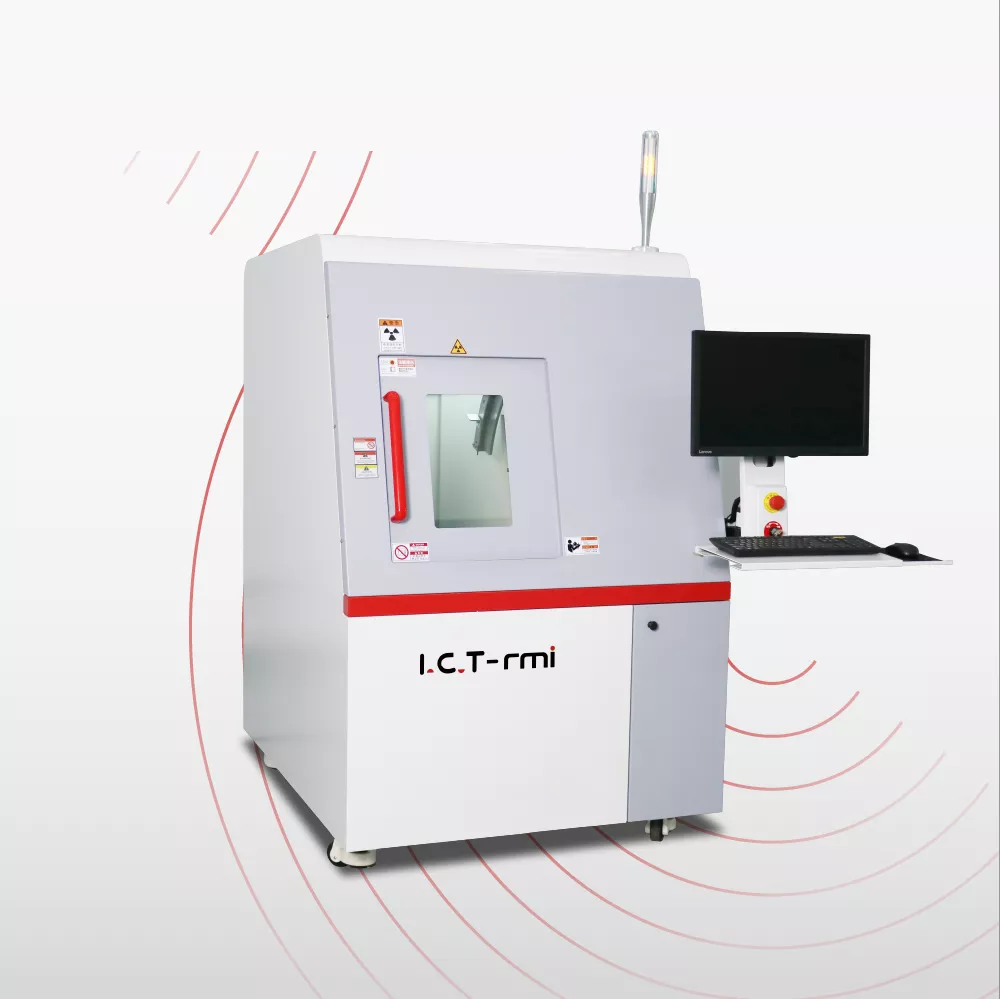

I.C.T X-7200 ອັດຕະໂນມັດ Offline SMT PCB X-ray ເຄື່ອງກວດກາ

X-Ray Tube:

Type: Closed tube

Voltage: 90kV

Electric current: 200uA

Spatial resolution: 5μm

Flat panel:

Image capture method: Flat panel digital imaging

Imaging accuracy: 85μm

A/D conversion quantized density value: 16bit (65536)

Resolution: 1280*1024px

Acquisition frame rate: 30 FPS

System:

Magnification: 200x

Operating system: Windows 10

Power: AC110-220V, 50-60HZ, 1200W

Radiation safety test: <1 uSV/H

Structure:

Max. Loading size: 540mm*540mm

Max. Inspection area: 510mm*510mm

Max. Loading weight: ≤10kg

Platform rotation angle: 60°

Dimension: 1100*1360*1750mm

Weight: 950kg
