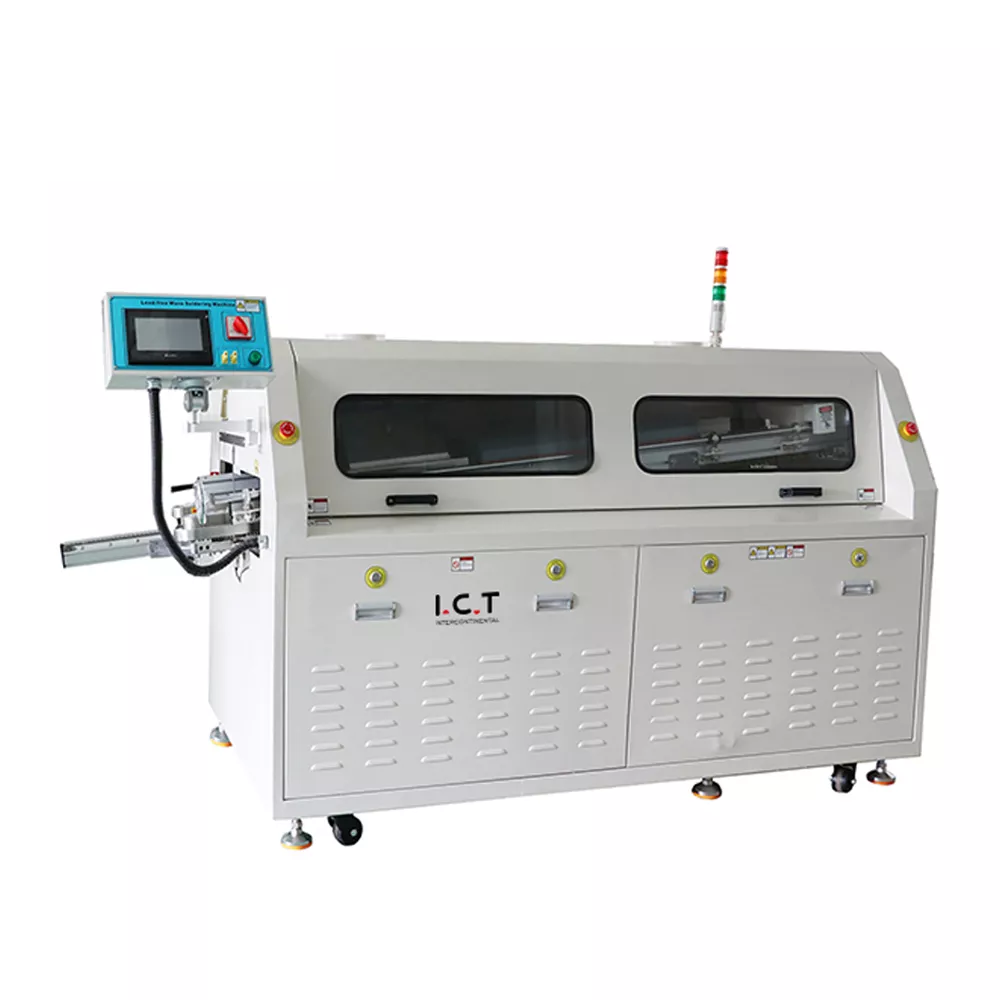

I.C.T W2 ປະຫຍັດຄຸນະພາບສູງ THT PCB Wave Soldering Machine

Dimension:(mm): 2900X1160X1500

Weight(kg): Approx.790kg

Power Supply: 3P5W,380/220V 50Hz

Startup Power: 16kw

Operation Power: 7kw

Control System: Touch Screen + PLC

Spray System:

Transmission Method:  Step motor

Spray Pressure: 0.25Mpa--0.4Mpa

lux flow: 10--100ml/min

Exhaust Diameter: Φ200mm

Exhaust Capacity: 25m3/min

Preheating System:

Preheating Mode: Hot air

Control Mode: PID + SSR

Preheating Zone: 1

Preheating Length: 900mm

Preheating Temp.: (Room Temperature)-250°C

Warm-up Time(min): Approx.15min (setting 150°C)

Conveyor System:

PCB Width:: 60~350mm

Conveyor Speed: 0-2000(mm/min)

Conveyor Height: 750+/-20 (mm)

Finger: Double hook claw (Standard)

Conveyor width control: Manually

Conveyor Angle: 4~7degree

Soldering System:

Solder Pot style: Mechanical Motor drive

Solder Pot Material: Full Titanium (Standard FT)

Solder pot temperature: 300°C

Solder pot capacity: Lead-free 250kg

Other:

Finger cleaning system: Brush
