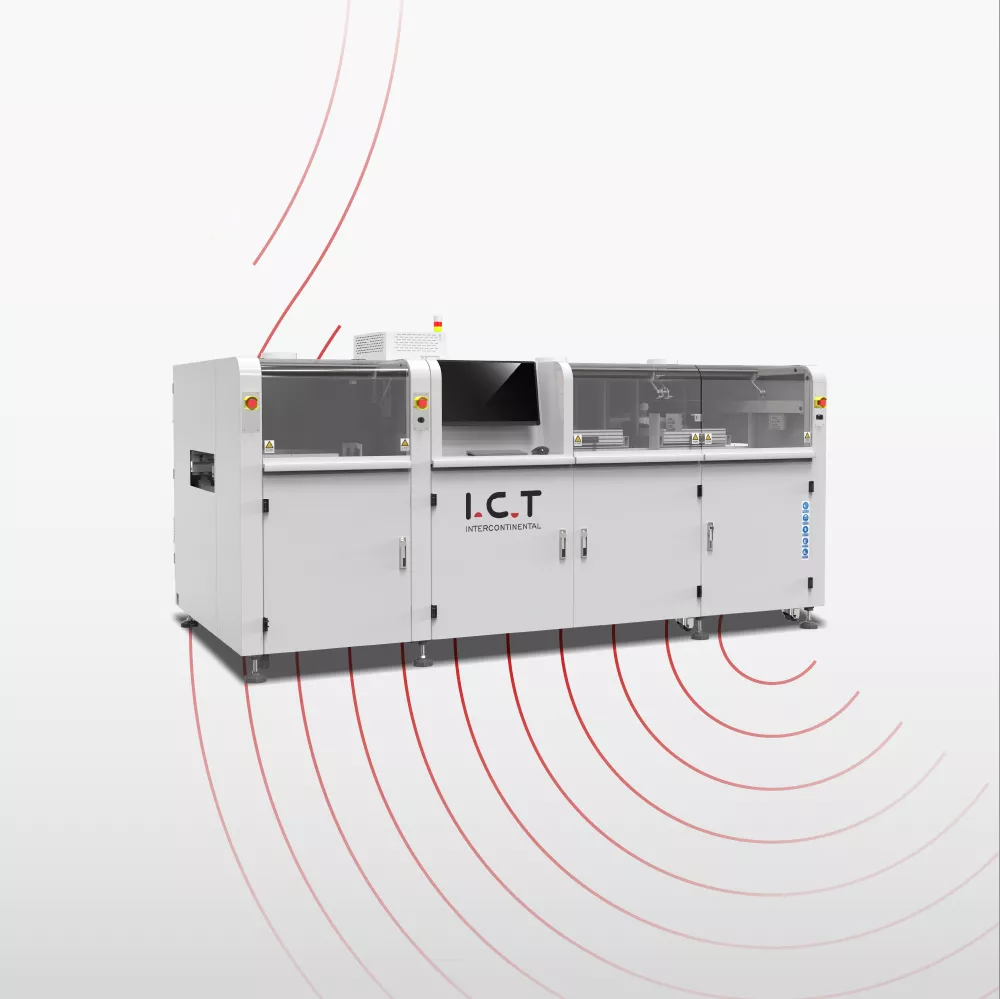

I.C.T I.C.T-SS550P2 Advanced Online 3 Solder Pot Selective Wave Soldering Machine (0~20mm/s)

On-line Modular: Spray + Preheating + Soldering + Soldering+ Soldering

Soldering System:

Nozzle Quantity: 3

Solder Pot Quantity: 3 set

Double Pot (Option): Option

Solder Pot Power: 7.05kw

Flux System:

Flux Storage Tank: 2L

Flux Support: Flux Alarm, Automatic

Spray Nozzle: Germany Jet Valve (Spot and line spraying) 1 set

Spray Nozzle Size: 130um (180um, 210um Option)

Spray Speed: 0~20mm/s

Spray Nozzle Move Speed: 0~400mm/s

Preheating System:

Preheating Mode: Hot air and IR

Preheating Area: L500*W500mm

Preheating Zone: Top hot air: 2, Bottom IR: 1

Bottom Preheating Power: Max.12kw

Top Preheating Power: Max.6kw

Warm-up Time: Approx.15min (setting 150℃)

Control Mode: PC+PLC

Transport System:

PCB Size (with fixture): 120*60~500*500mm

PCB Replacement: Online

PCB Top Clearance: 120mm

Transport Height: 900±20mm

Transport Width: 60~500mm

Dimension：L2600*W1950*H1480mm

Weight:  Approx: 1500kg
