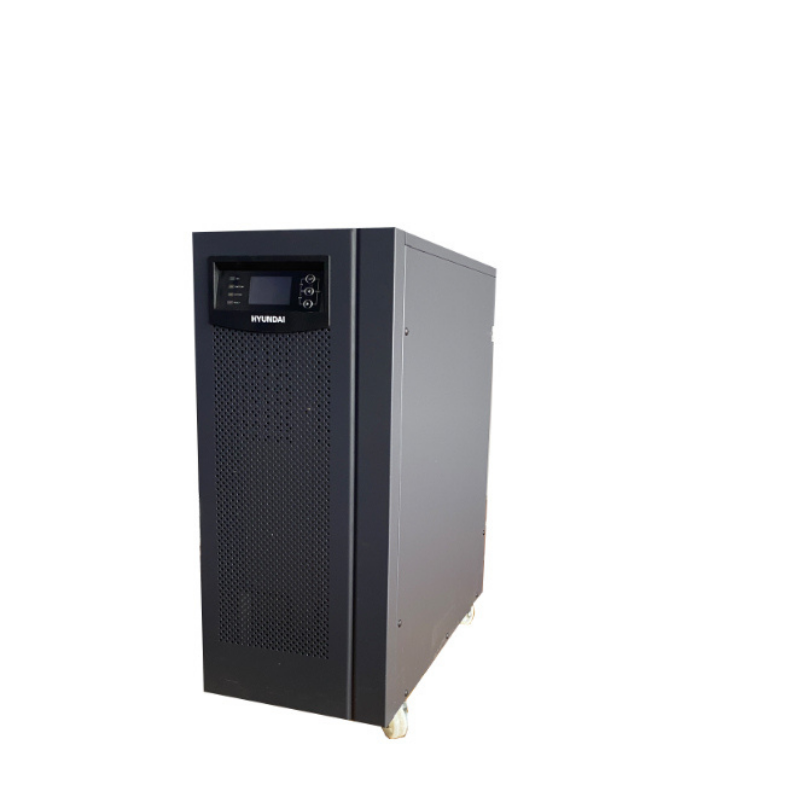

Hyundai HD-6KT9 ການສະຫນອງພະລັງງານແບບບໍ່ຕິດຂັດອອນໄລນ໌ (6KVA)

Specifications

Rated power (KVA/KW): 6/5.4

Noise level (dBA): < 60

Input specification

Nominal voltage (VAC): 220

Voltage range (VAC): 120-276

Frequency range (Hz):46-54

Number of phases: 1P + 2W + G

Output specification

Voltage (VAC): 220 ±1% VAC

Frequency (Hz): Main mode (46 – 54Hz)/ (56 – 64Hz); Battery mode 50 (± 1%)Hz/ 60 (± 1%)Hz

Switching time (second): 0 second, switch from inverter to bypass in 0 second

Waveform: Standard sine wave

Connection port

Communication port: RS-232

Battery

Quantity and type: 16 x 12V x 7Ah

Power backup time (100% load): 6-10 minutes

Charging time: reaches 90% within 8 hours of charging

Dimension & Weight

Product dimensions (mm): 660 x 360 x 721 (L x W x H)

Weight: 57kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
