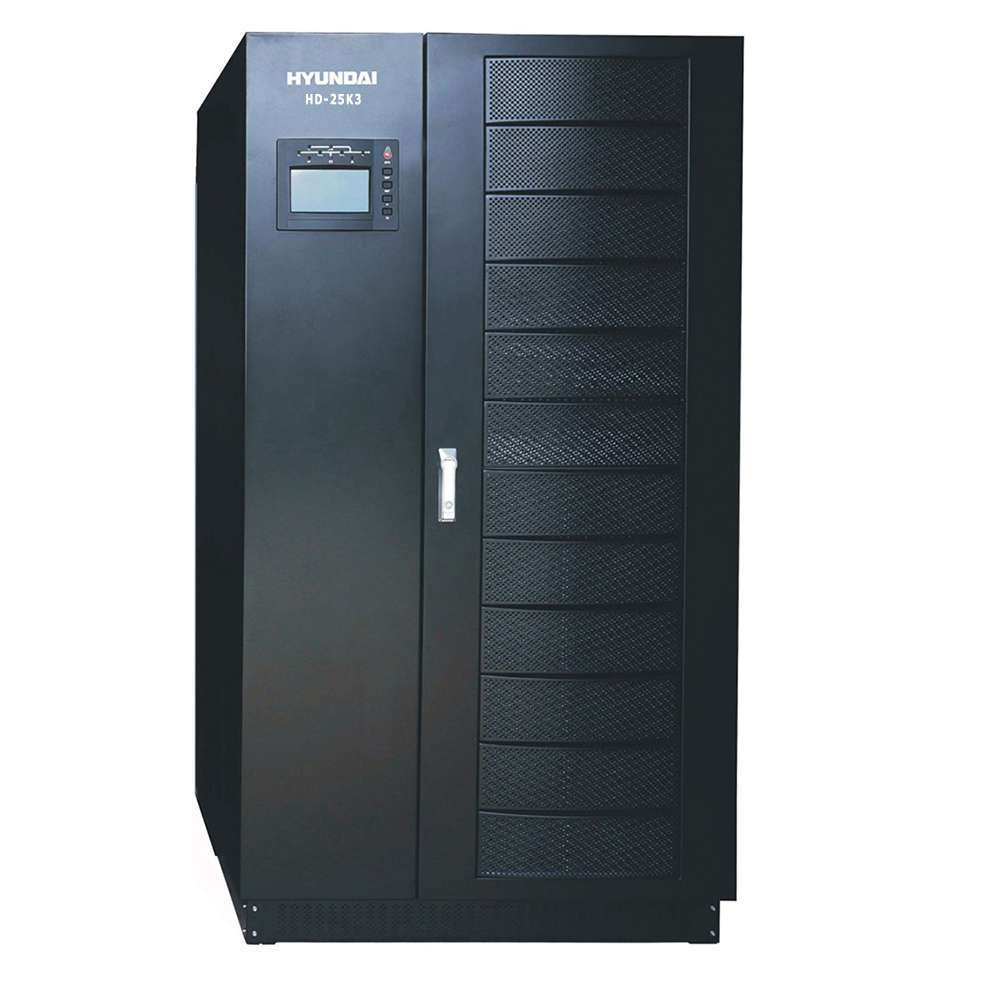

Hyundai HD-25K3 ການສະຫນອງພະລັງງານທີ່ບໍ່ມີການລົບກວນອອນໄລນ໌ (25KVA, three-phase)

Specifications

Rated power (KVA/KW): 25/22.5

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 380

Voltage range (VAC): 380 ± 25%

Frequency range (Hz): 45 ± 10%

Number of phases: 3

Output specification

Voltage (VAC): 380

Frequency (Hz): 50

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 32PCS x 12V hoặc 19PCS x 2V

Dimension & Weight

Product dimensions (mm): 600 x 620 x 1250 (L x W x H)

Weight: 304 kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
