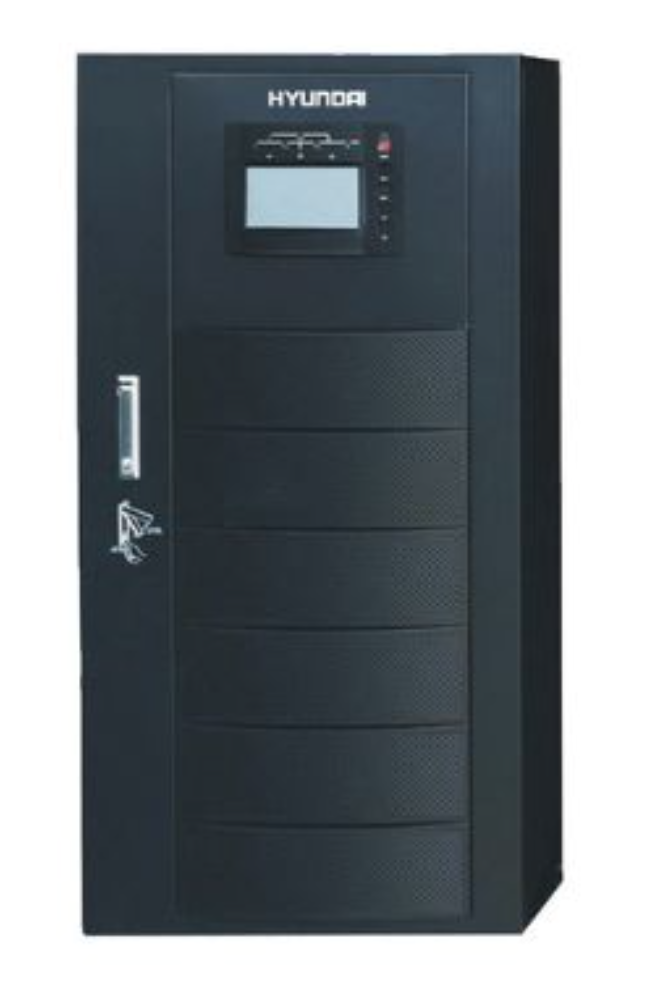

Hyundai HD-20KL2 ການສະຫນອງພະລັງງານທີ່ບໍ່ມີການລົບກວນອອນໄລນ໌ (20KVA/ 16KW)

Specifications

Rated power (KVA/KW): 20/16

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 380

Input frequency: 380 ± 25% Hz

Connection to generator: supported

Number of phases: 3

Output specification

Voltage (VAC): 220/230/240 ± 0.5%

Frequency (Hz): 50 ± 1%

Transfer time (second): 0 second

Waveform: Standard sine wave

Overload capacity: 127 - 138% in 25-30 seconds

Battery

Quantity and type: Battery cabinet and external battery are not included. 16-32 sealed 12VDC, 60Ah batteries can be set up without maintenance

Dimension & Weight

Product dimensions (mm): 616 x  620 x 500 (L x W x H)

Weight: 248 kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 85% without condensation
