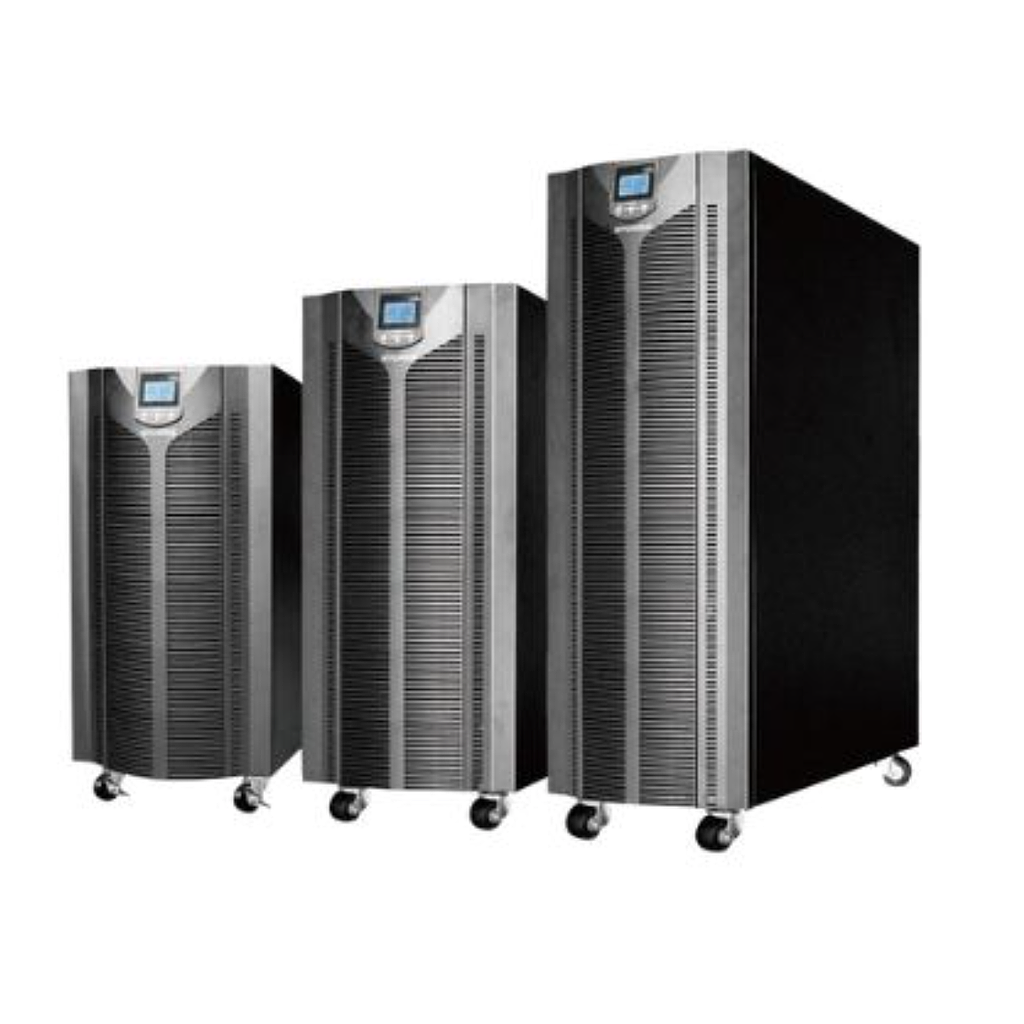

Hyundai HD-15KH ການສະຫນອງພະລັງງານແບບບໍ່ຕິດຂັດອອນໄລນ໌ (15KVA/13.5KW)

Specifications

Rated power (KVA/KW): 15/13.5

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 360/380/400/415

Voltage range (VAC): 277-485 or 190-277

Frequency range (Hz): 40-70

Number of phases: 3:3

Output specification

Voltage (VAC): 277-485 hoặc 190-277

Frequency (Hz): 45-55 or 55-65

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 192VDC

Dimension & Weight

Product dimensions (mm): 350 x 655 x 732 (L x W x H)

Weight: 60kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
