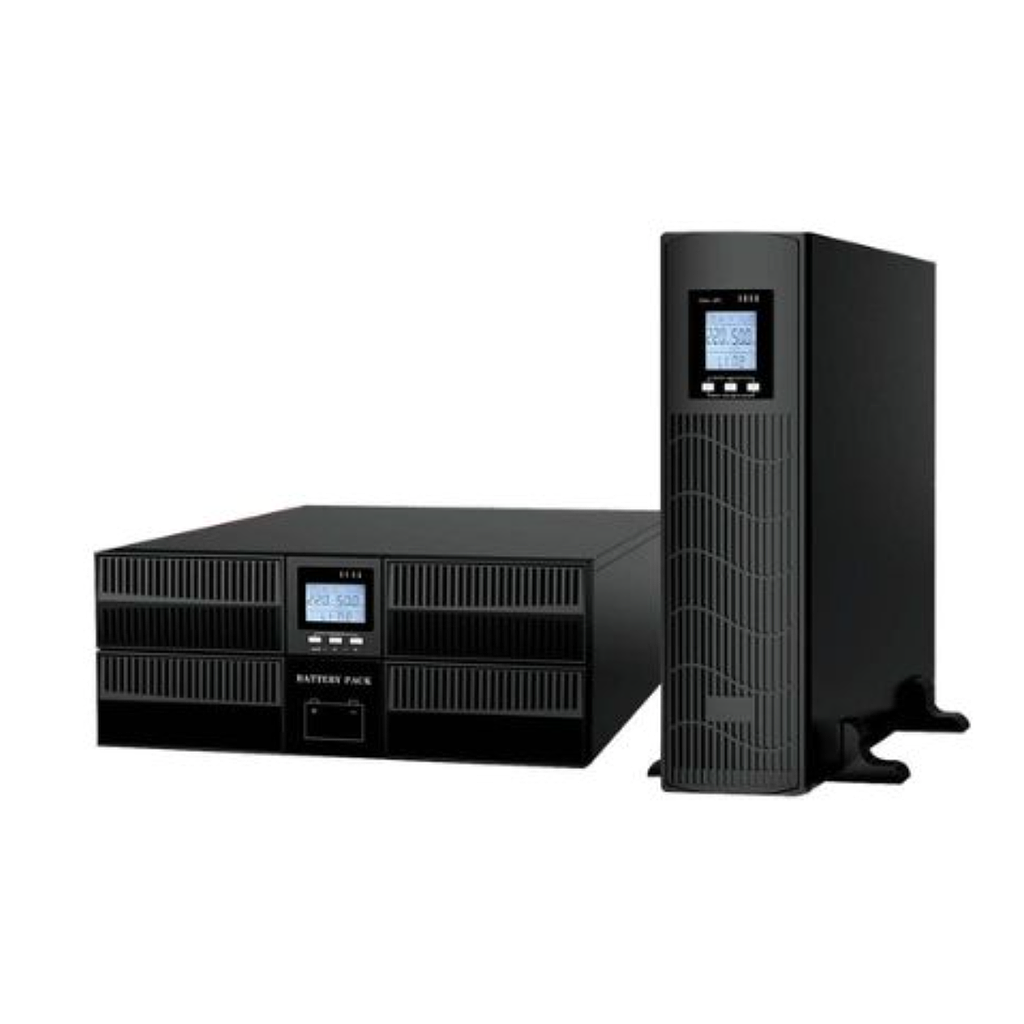

Hyundai HD-10KR2 ການສະຫນອງພະລັງງານທີ່ບໍ່ມີການລົບກວນອອນໄລນ໌ (10KVA/ 9KW)

Specifications

Rated power (KVA/KW): 10/9

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 380/400/415

Voltage range (VAC): 190-304 or 304-478

Frequency range (Hz): 40-70

Number of phases: 3:1

Output specification

Voltage (VAC): 380/400/415

Frequency (Hz): Battery mode 50/60Hz ± 0.1%; Main mode synchronizes with Bypass

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 192VDC, 16PCS

Charging time: reaches 90% within 8 hours of charging

Dimension & Weight

Product dimensions (mm): 440 x 650 x 88 (L x W x H)

Weight: 17kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
