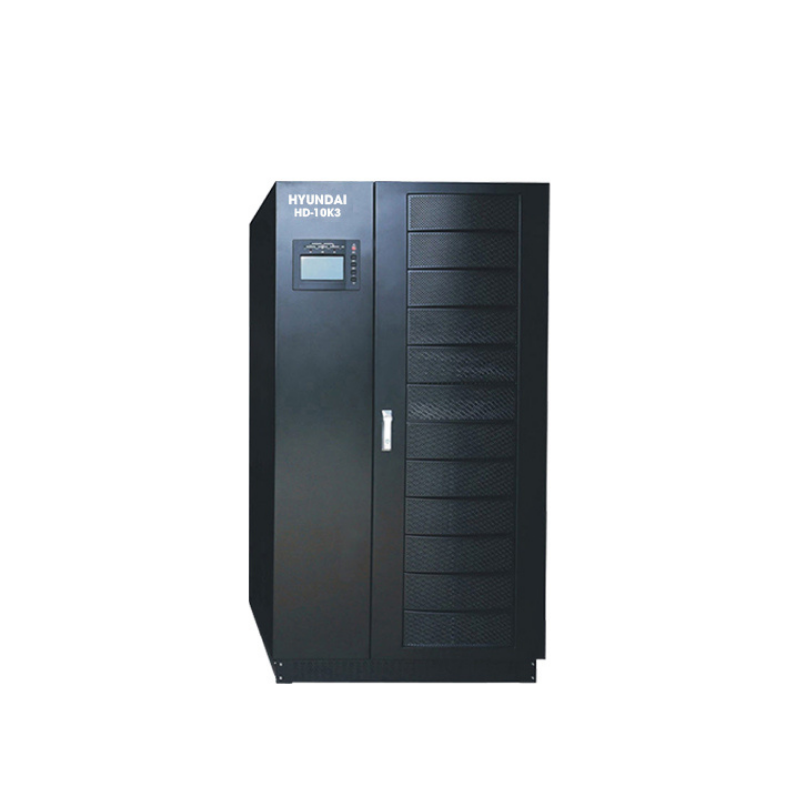

Hyundai HD-10K3 ການສະຫນອງພະລັງງານທີ່ບໍ່ມີການລົບກວນອອນໄລນ໌ (10KVA/ three-phase)

Specifications

Rated power (KVA/KW): 10/9

Noise level (dBA): 60

Input specification

Nominal voltage (VAC): 360 / 380 / 400 / 415

Voltage range (VAC): 277 – 485 or 190 – 277

Frequency range (Hz): 40 - 70

Number of phases: 3

Output specification

Voltage (VAC): 360 / 380 / 400 / 415

Frequency (Hz): 45 – 55 or 55 – 65

Switching time (second): 0 second

Waveform: Standard sine wave

Battery

Quantity and type: 32PCSx12V or 192PCSx2V

Charging time: reaches 90% within 8 hours of charging

Dimension & Weight

Product dimensions (mm): 400 x 800 x 1100 (L x W x H)

Weight: 200kg

Operating environment

Operating temperature: 0ºC – 40ºC

Humidity: 20 – 90% without condensation
